Figure 8
From: Finite element analysis of load transition on sacroiliac joint during bipedal walking

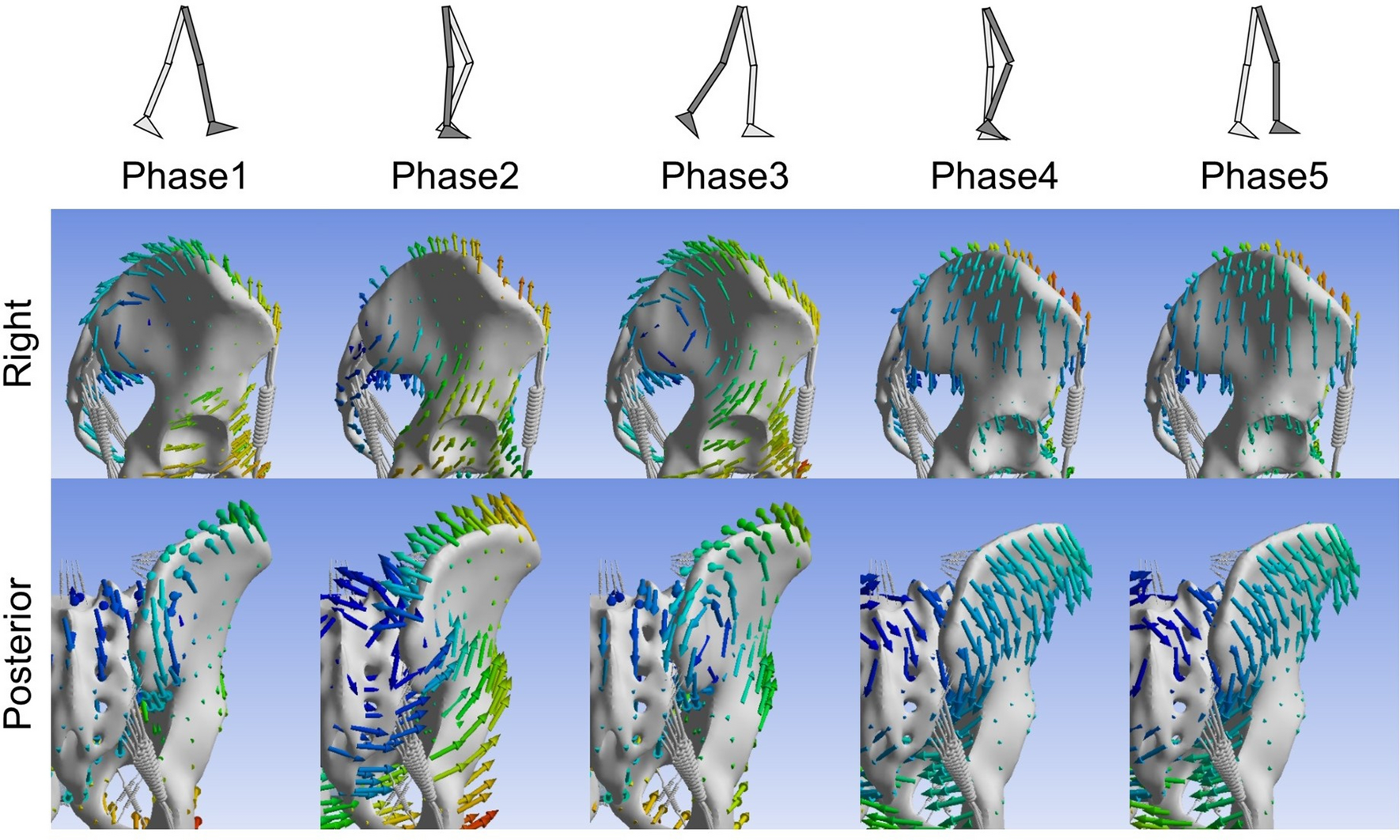

Resultant displacement vector diagrams of pelvis on a representative example. Right (1st line) and posterior (2nd line) indicate diagrams shown from right and posterior, respectively.
