Figure 3

From: Revising the mechanism of p75NTR activation: intrinsically monomeric state of death domains invokes the "helper" hypothesis

Figure 3

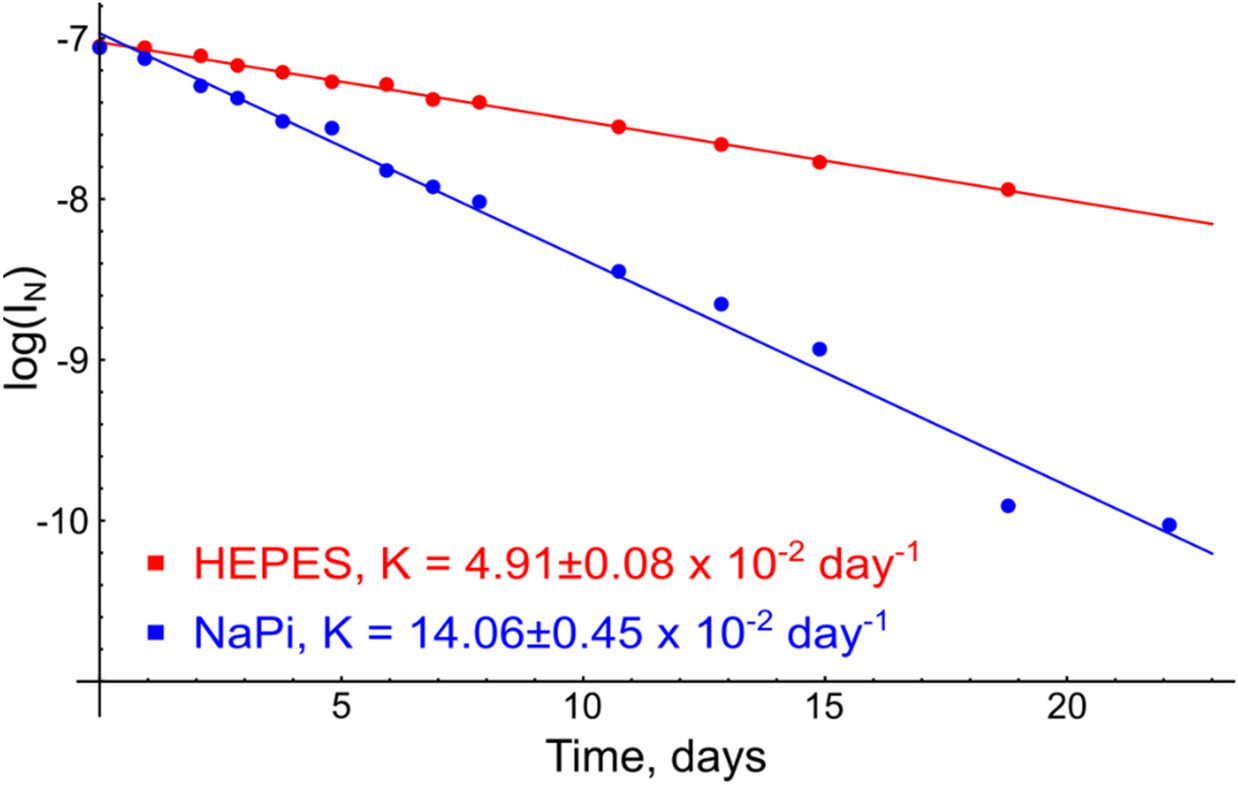

The kinetics of hP75DD deamidation in phosphate and HEPES buffers. The intensity of signal, corresponding to the N352 form of hP75DD is plotted as a function of time in a logarithmic scale. Two experiments are shown: in 20 mM HEPES pH 7.0 (in red) and 50 mM NaPi, pH 7.0 (in blue). The Figure was prepared using the program Inkscape 0.92 (https://inkscape.org/).
