Figure 3
From: Organically modified layered magnesium silicates to improve rheology of reservoir drilling fluids

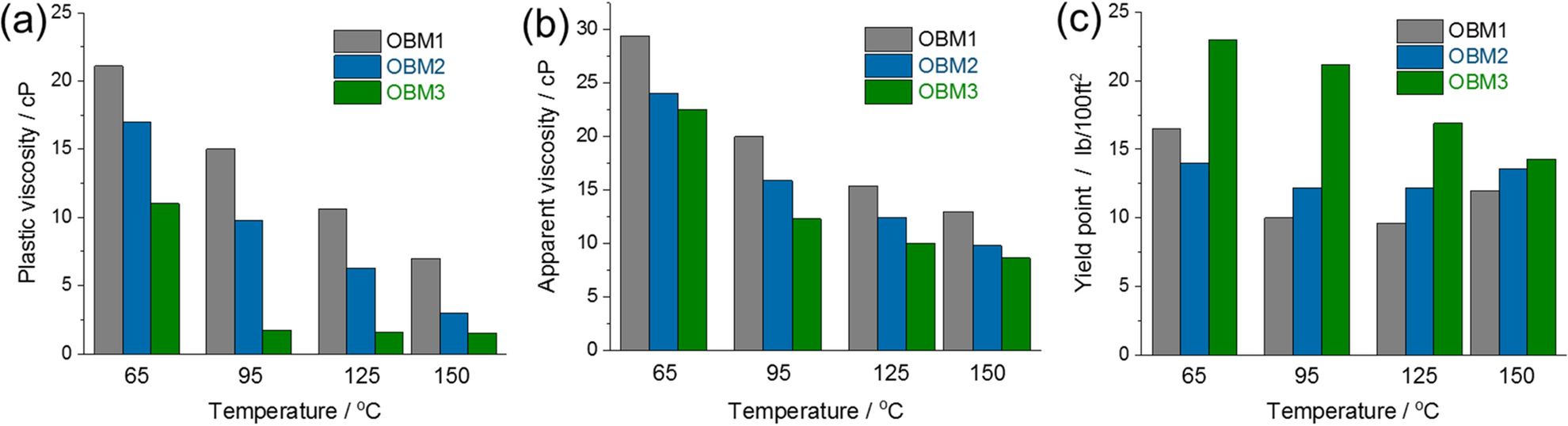

Rheological properties of OBMs. (a) Plastic viscosity, (b) Apparent viscosity, and (c) Yield point, up to 150 °C at 70 MPa.
