Figure 2
From: Real time monitoring of oxygen uptake of hepatocytes in a microreactor using optical microsensors

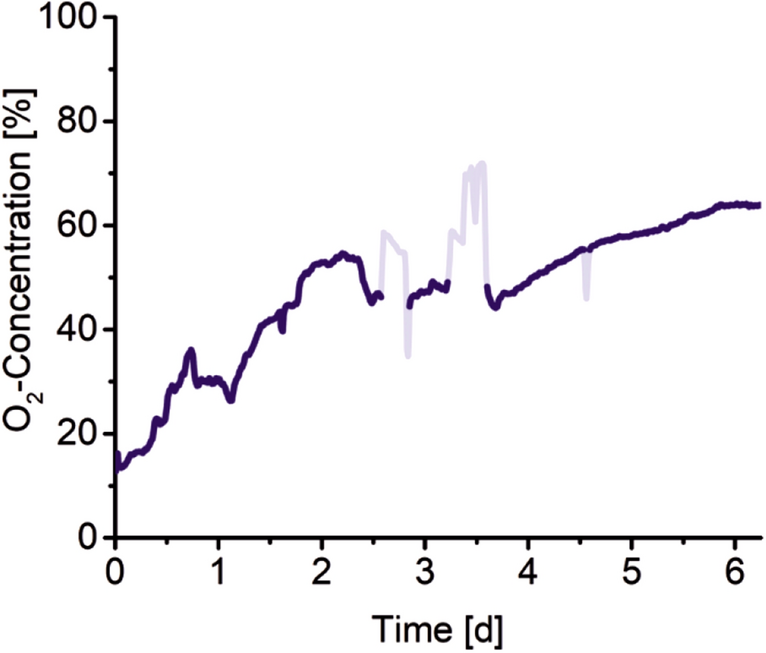

The graph shows the oxygen concentration in a well in the reactor which is filled with primary mouse hepatocytes as a function of time. The increasing oxygen concentration indicates a decreasing oxygen uptake of the cells. The peaks and dips in light blue are caused by air bubbles.
