Figure 7
From: Characterization of immune response induced against catalytic domain of botulinum neurotoxin type E

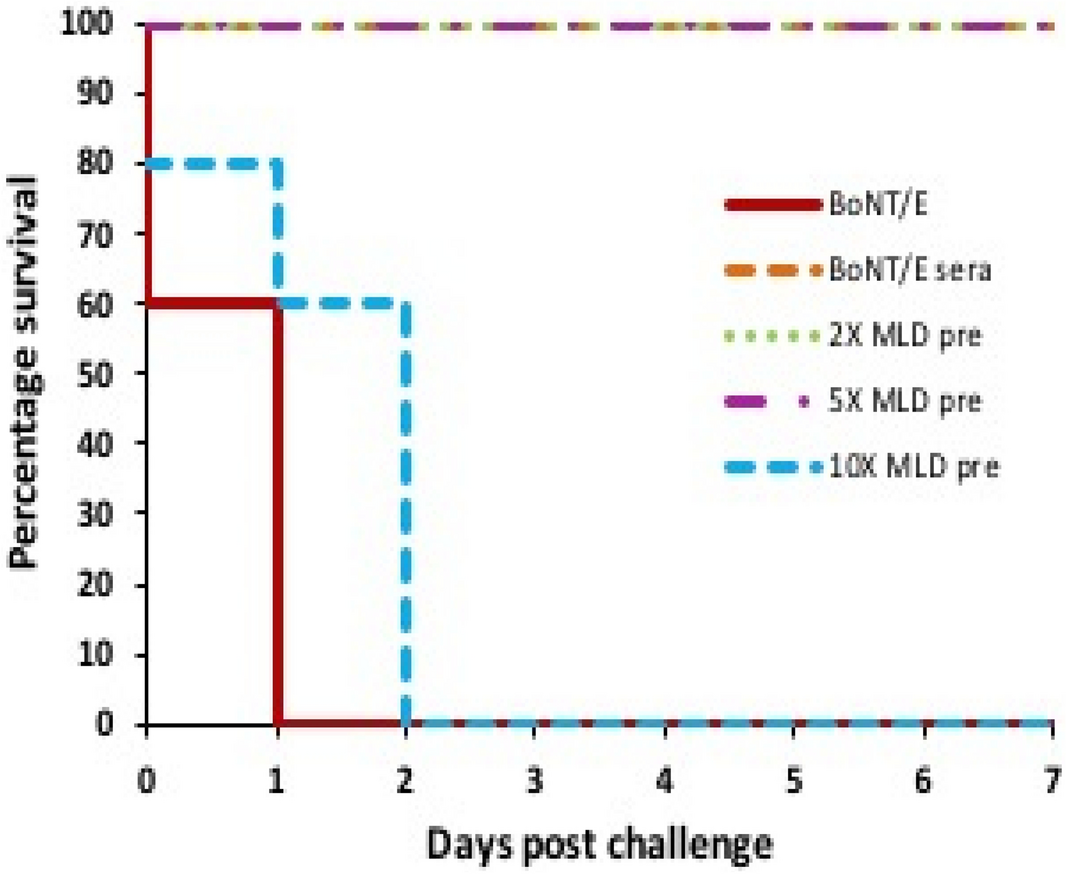

In vitro neutralization study: The naïve BALB/c mice were injected with BoNT/E (brown), BoNT/E sera alone (orange), pre-incubated mixture of vaccinated mice sera: with 2x (green), 5x (purple) and 10x MLDs (blue). This graph illustrates the animals examined for 7 days for their survival.
