Figure 1

From: Metabolomics approach revealed robust changes in amino acid and biogenic amine signatures in patients with schizophrenia in the early course of the disease

Figure 1

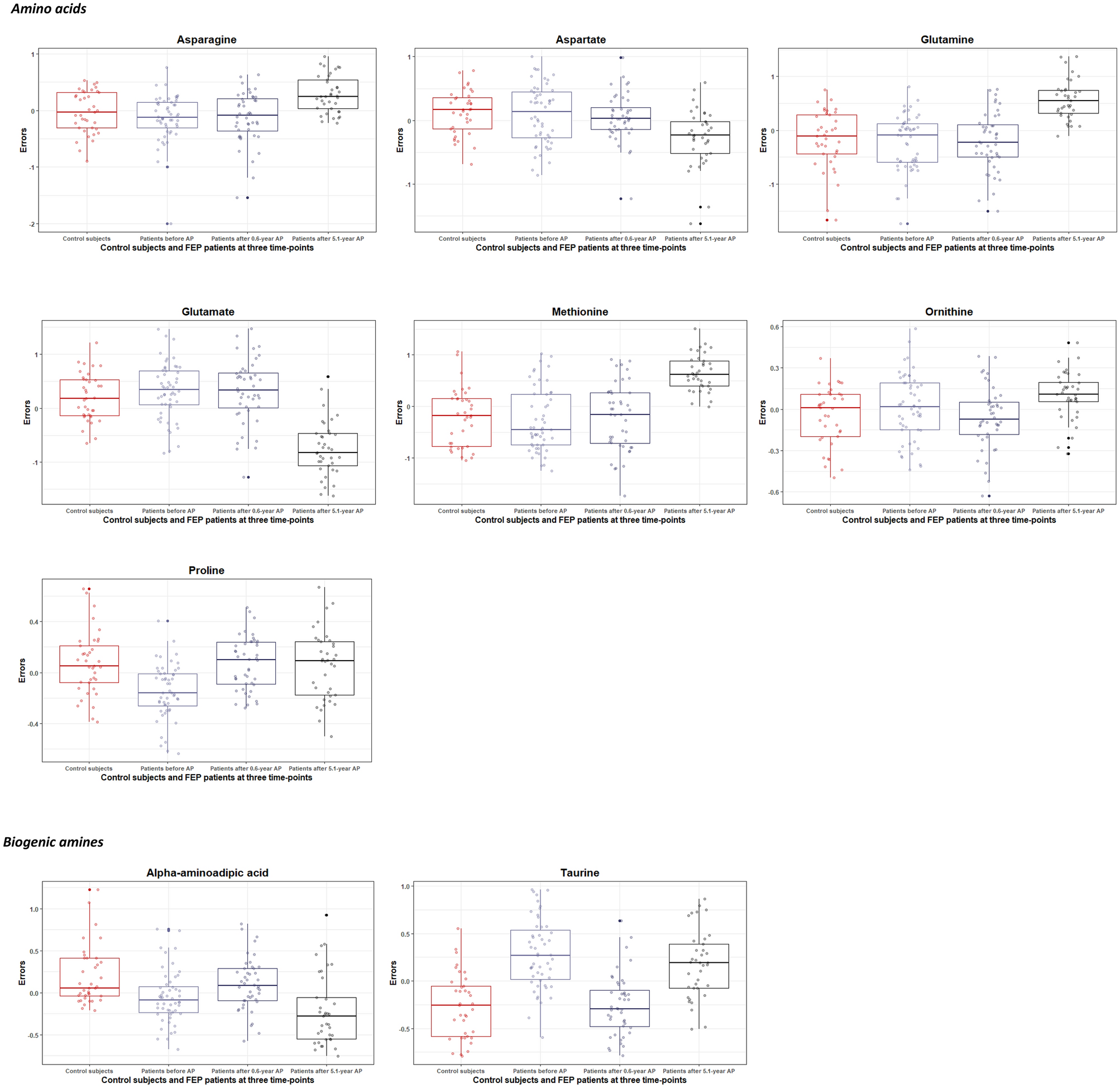

Boxplots of the statistically significant variation of the errors (residuals) of log-transformed amino acid and biogenic amine levels (derived by regressing out covariate effects) for control subjects and first episode (FEP) patients at baseline (before treatment with antipsychotics (AP)), after 0.6-year, and after 5.1-year treatment with AP. The solid horizontal line in each box represents the median. The area above and below the line represents the 50th to the 75th and the 25th to the 50th percentiles, respectively. The whiskers extend to the highest and lowest values contained within 1.5 times the interquartile range of the data. Each calculated error variance is represented as a dot.
