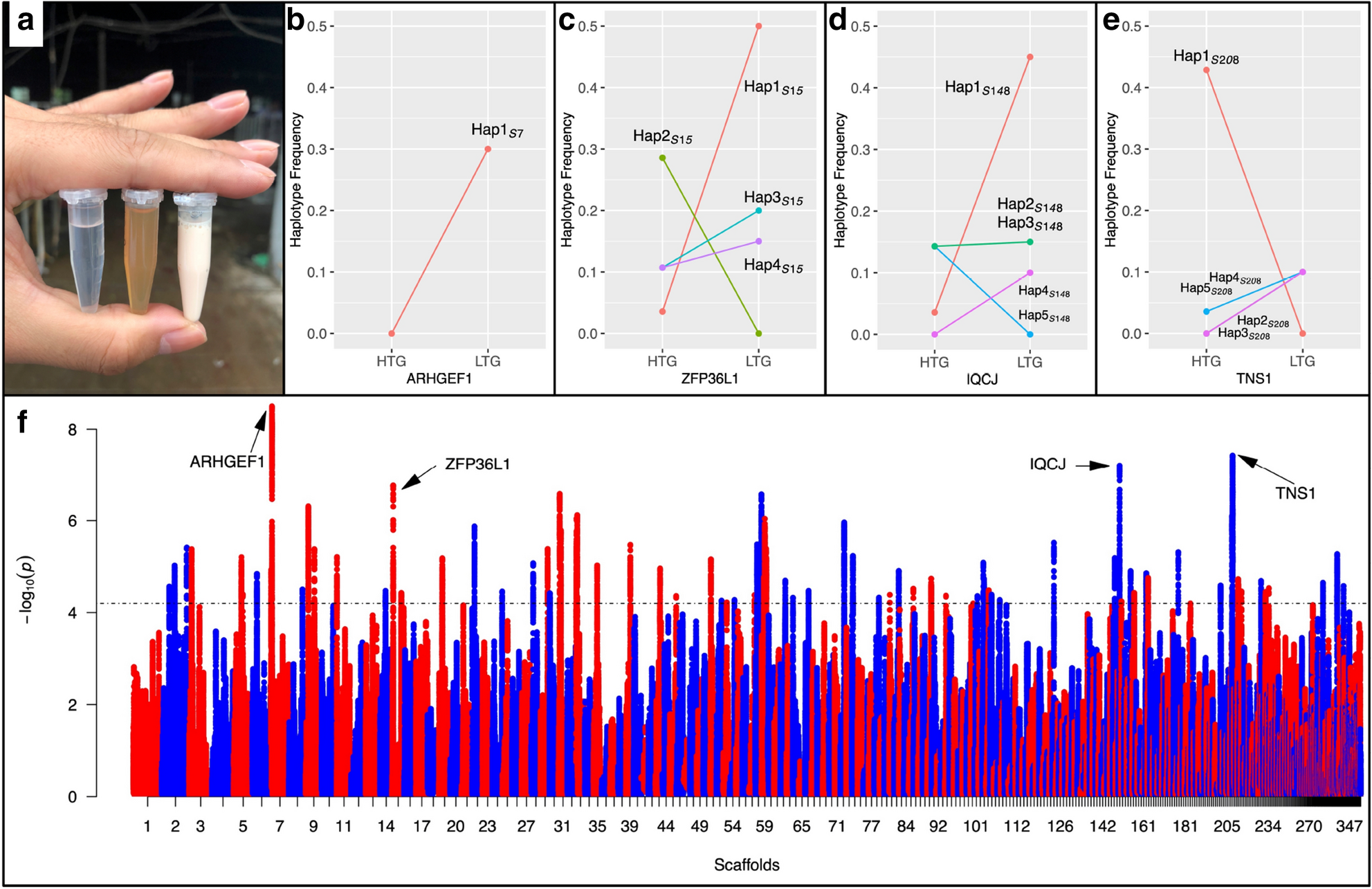

Figure 5

Illustration of the data and results from a haplotype-divergence analysis among geese with different blood TG concentrations. In (a), liquids in tubes from left to right were water, serum from overfed geese in the low triglyceride control (LTG) group, and serum from overfed geese in the case group with very high triglyceride (HTG) concentration. (b–e) show the haplotype frequencies around the ARHGEF1, ZFP36L1, IQCJ, and TNS1 genes in the HTG and LTG groups. Panel (f) shows the Manhattan plot from a selective signature screening between the LTG and HTG groups. The y-axis is − log₁₀(p) values with the dashed line being the significance threshold (FDR = 0.05). The x-axis is the scaffold numbers as given in Supplementary Table S4.
