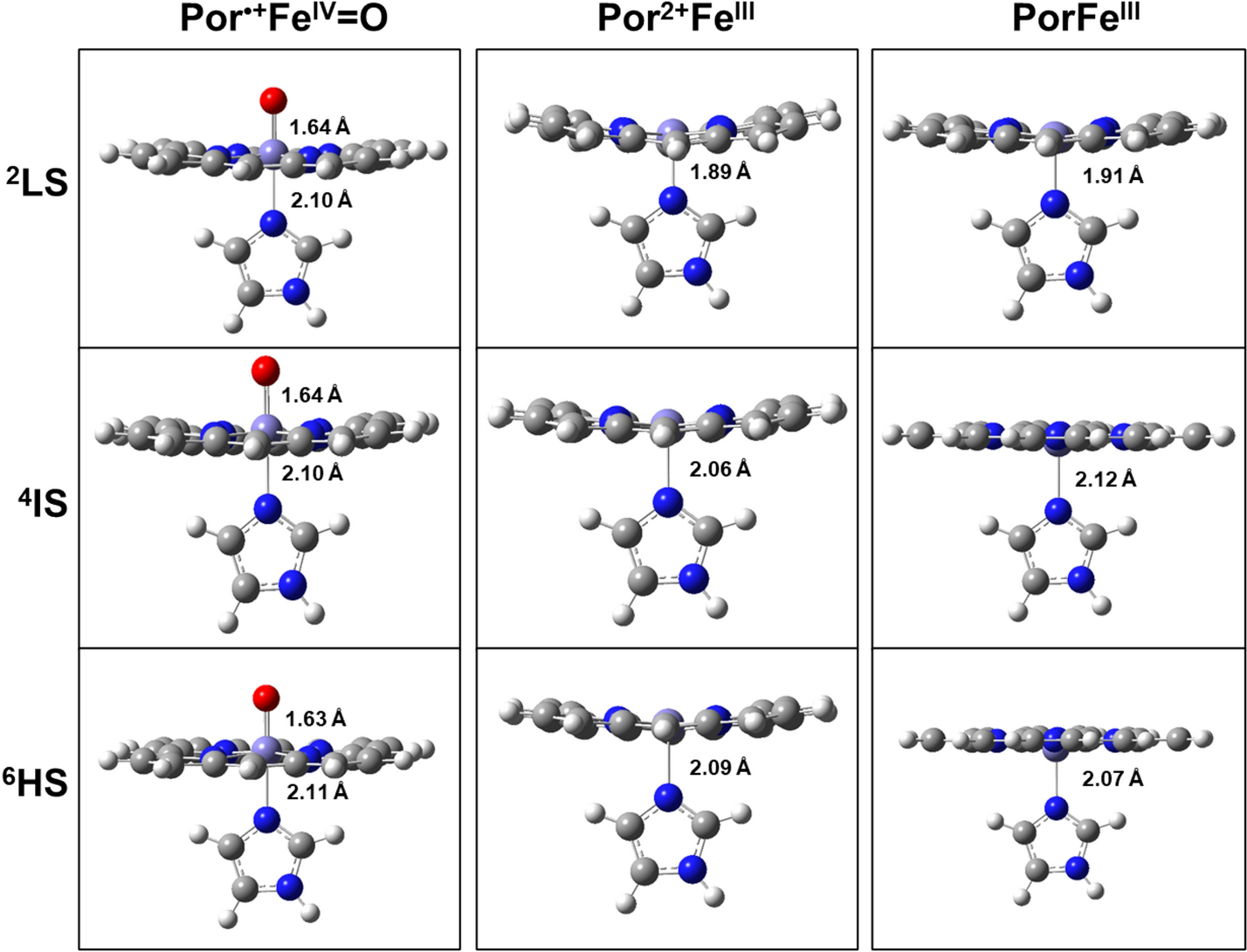

Figure 2

Optimization of reaction between two protons and Por^•+Fe^IV=O. ²LS doublet spin state, ⁴IS quartet spin state, ⁶HS sextet spin state. Color representation of atoms: gray for carbon, white for hydrogen, red for oxygen, and blue for nitrogen.
