Figure 6
From: Metasurface sensing difference in waveforms at the same frequency with reduced power level

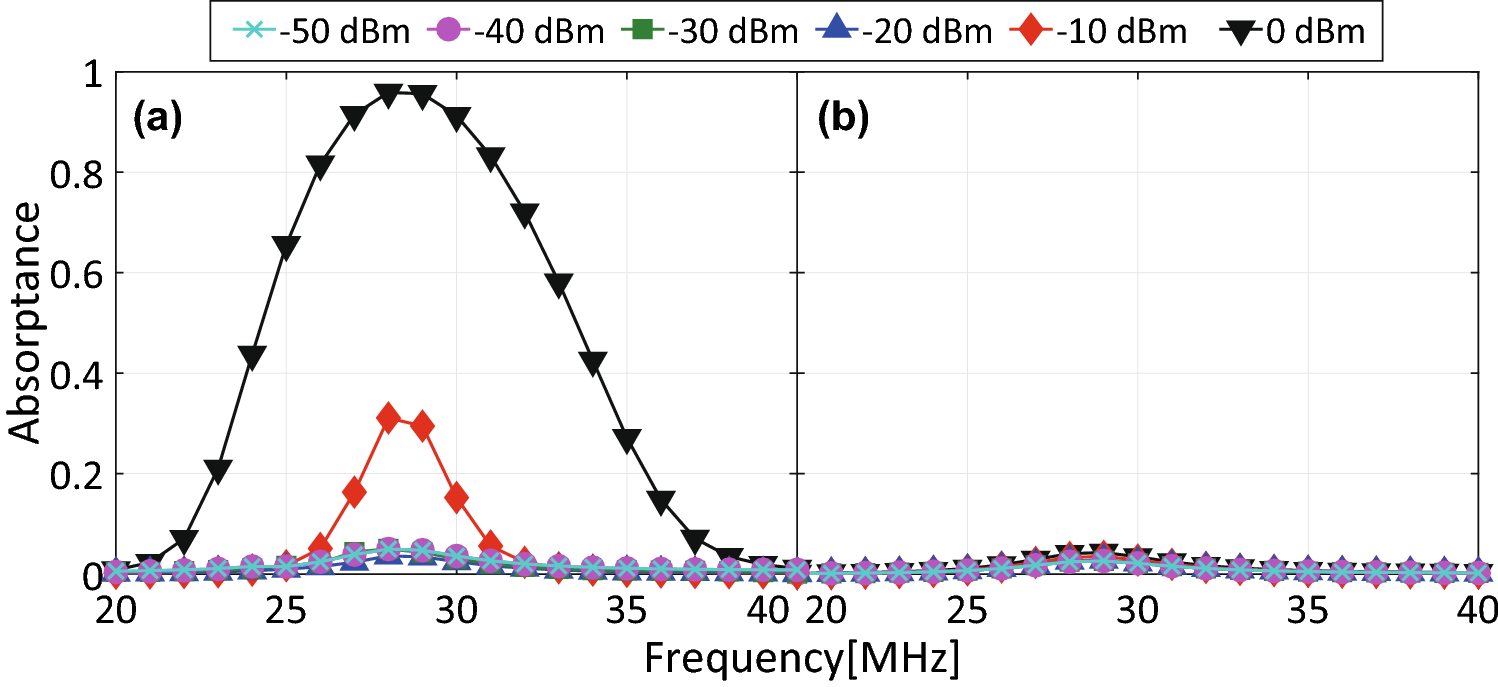

Absorptance of a conventional capacitor-based waveform-selective metasurface using schottky diodes for (a) 5-\(\upmu \)s short pulse and (b) CW.
