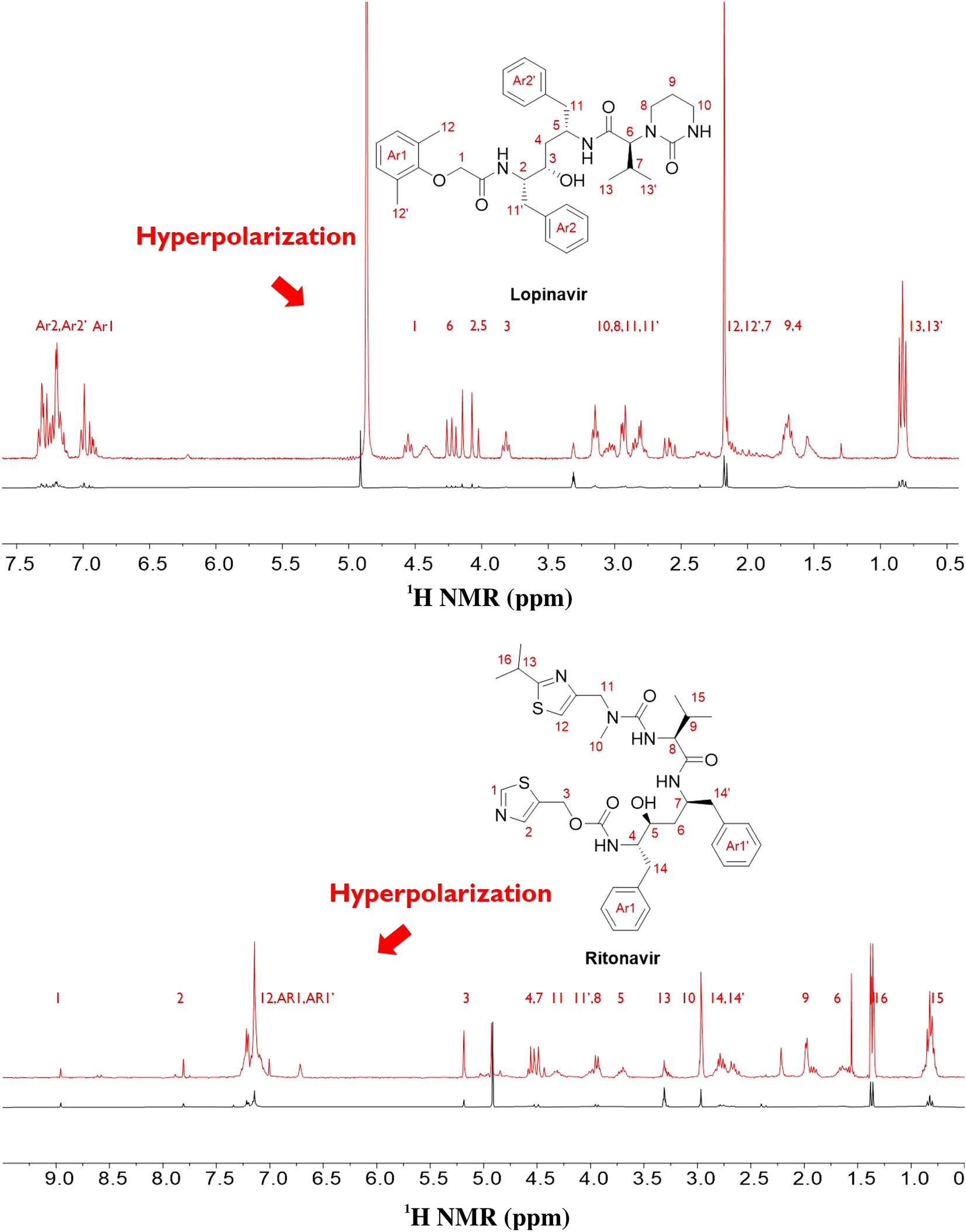

Figure 8
From: Signal amplification by reversible exchange for COVID-19 antiviral drug candidates
Hyperpolarized signal from lopinavir (upper spectrum) and ritonavir (low spectrum) after SABRE in the presence of a 70 G magnetic field. (single scan in 300 MHz 1H NMR, 30° pulse of 1H after polarization).
