Figure 3

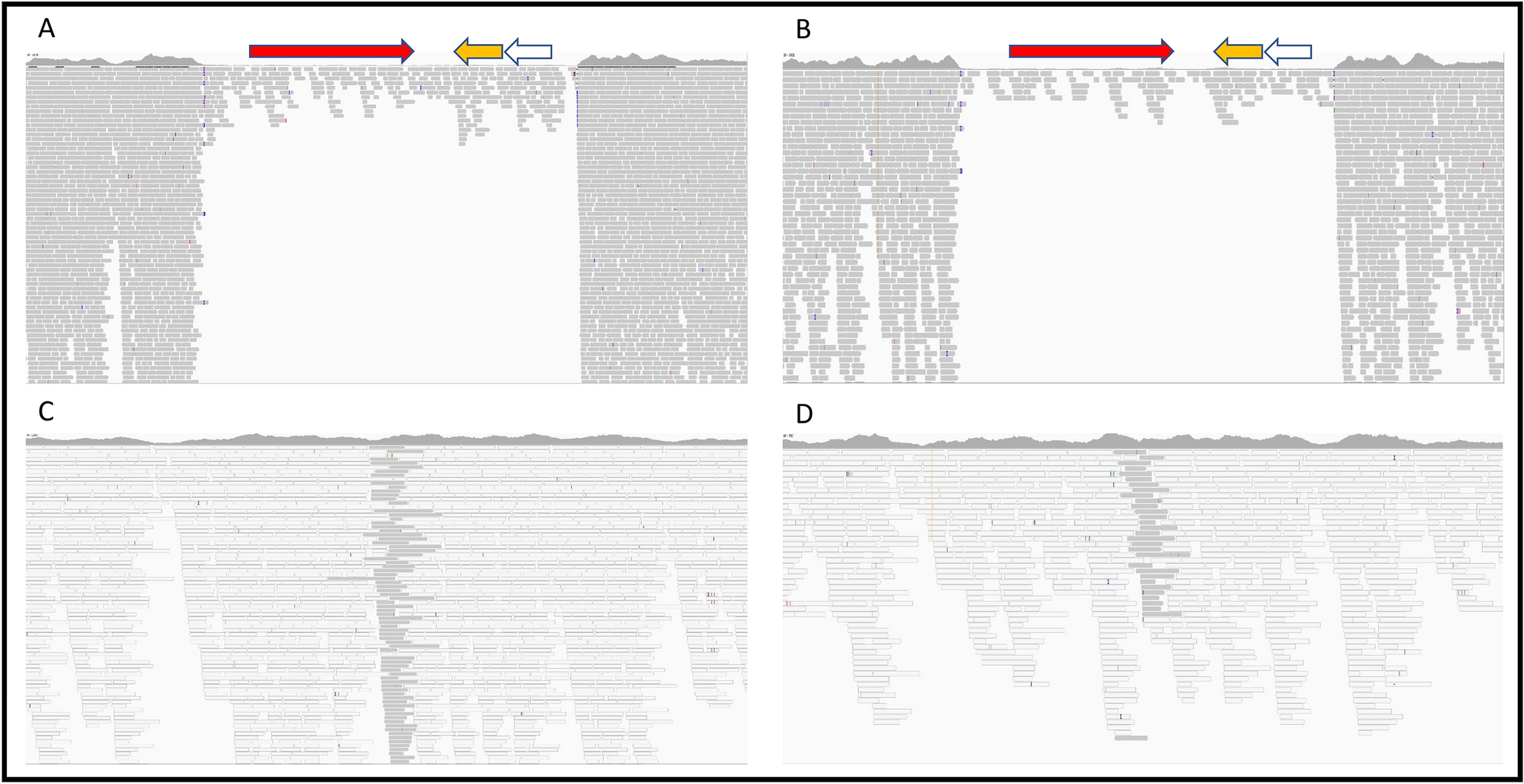

Coverage plots of pPCP1. (A, B) Coverage plot of the pla region in G701 (A) and G488 (B) depicting the pla gene in red, the putative transcriptional regulator in yellow and the hypothetical protein in white. G488 average coverage (ac) before the pla region 107x, ac of the pla region 7x; G701 ac before the pla region 47x, ac of the pla region 3x. Each grey line represents an obtained aDNA sequence. (C) Coverage plot showing reads of G701 (sequences in dark grey) specifically mapping to the gap-spanning region. A white color indicates sequences that could be mapped to both the pla+ and pla− references as they are not specific to the newly created region. (D) Coverage plot showing reads of G488 (sequences in dark grey) specifically mapping to the gap-spanning region.
