Figure 3
From: Pressure effect on the order–disorder transformation in L10 FeNi

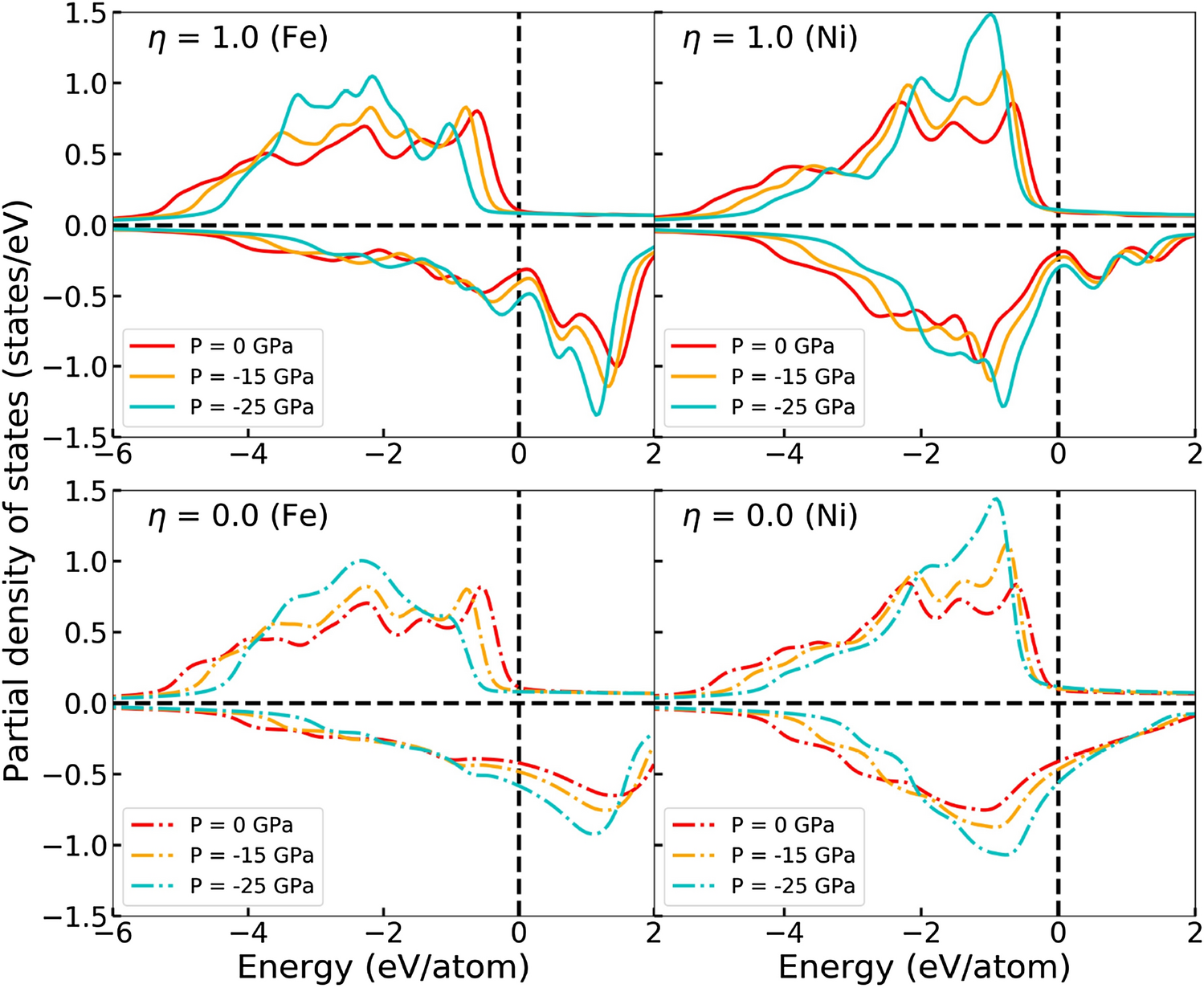

Partial density of states of Fe and Ni for the ordered (up) and random phases (down) at different pressures as a function of energy relative to the Fermi energy.
Figure 3 | Scientific Reports
