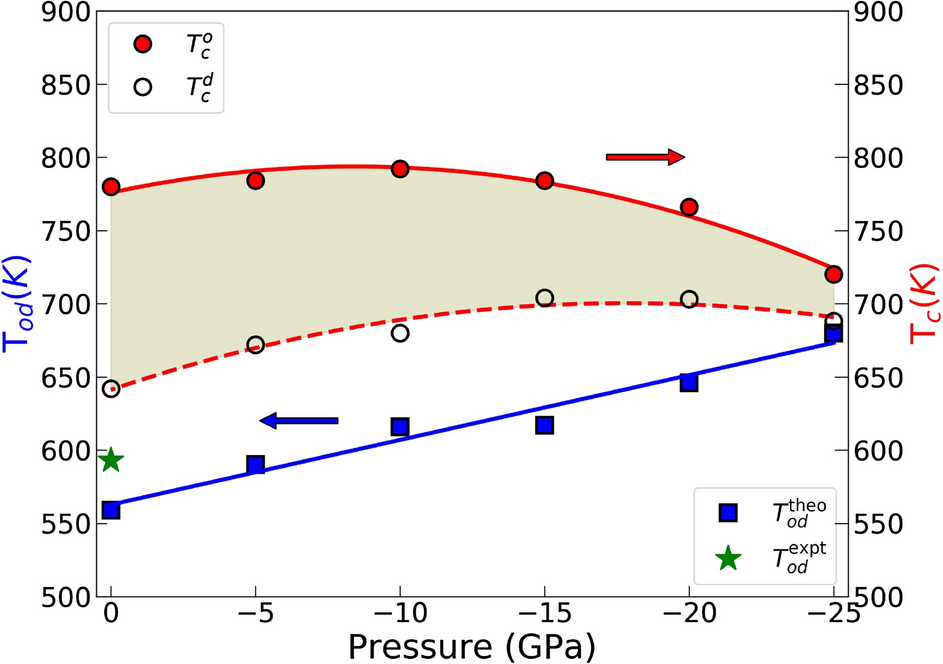

Figure 5
From: Pressure effect on the order–disorder transformation in L10 FeNi
Variation of the order–disorder and magnetic transition temperatures of FeNi with pressure. Open and closed circles show the Curie temperatures of ordered and disordered states, respectively, and squares show the chemical ordering temperature. Experimental ordering temperature is shown for reference17.
