Figure 7

From: A therapeutic oxygen carrier isolated from Arenicola marina decreased P. gingivalis induced inflammation and tissue destruction

Figure 7

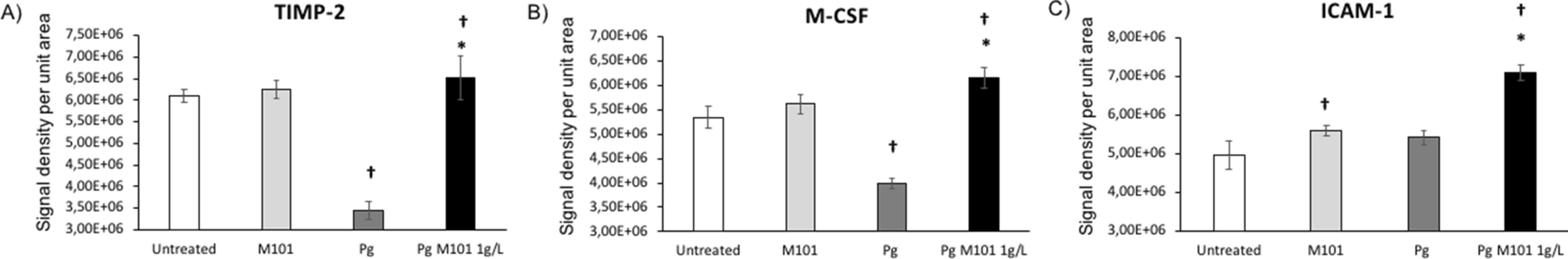

M101 promotes the release of ECM and immune modulators in Pg-induced inflammation in EC. The expression levels amongst untreated EC, M101-treated EC, Pg-infected EC and M101 treated Pg-infected EC were compared. M101 treatment (1 g/L) for 6 h increased the protein expression of (A) TIMP-2, (B) M-CSF and (C) ICAM-1 in untreated and Pg-infected EC (MOI = 100). Data are expressed as the mean ± SD. †Difference versus untreated EC, p < 0.05, *difference versus Pg-infected EC, p < 0.05.
