Figure 4

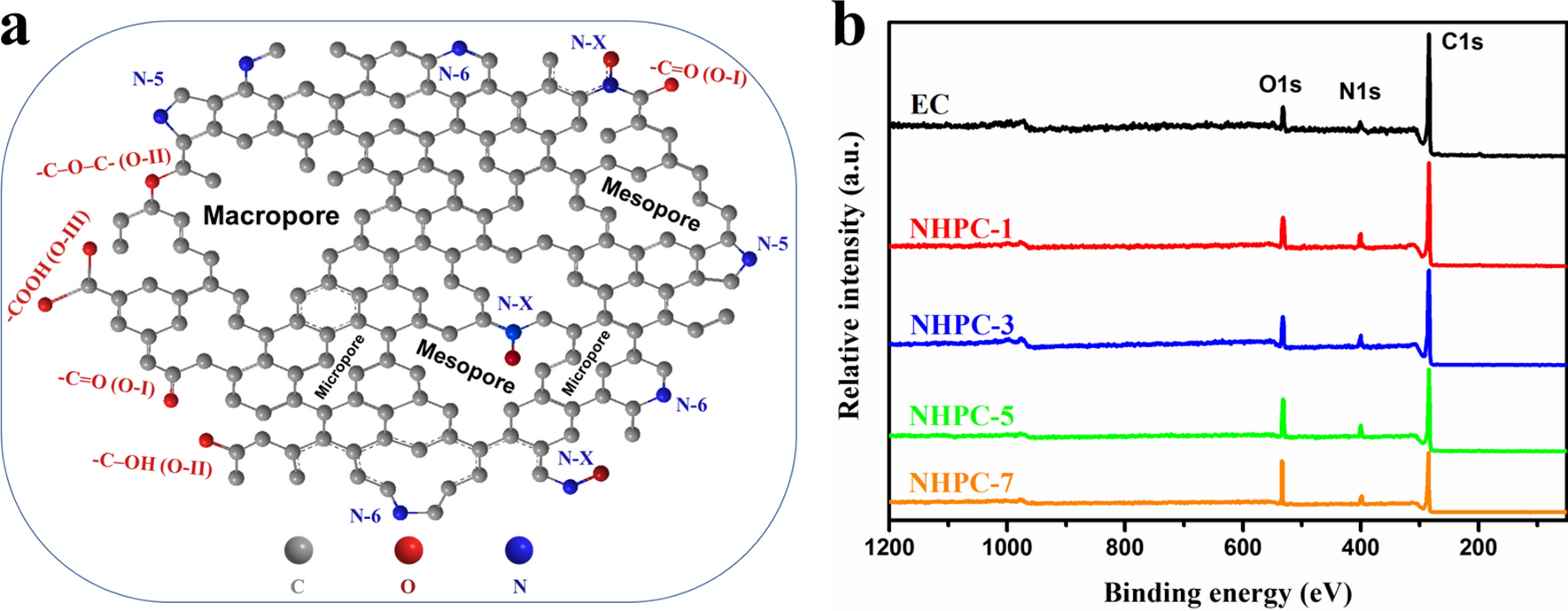

A schematic diagram (a) of the heteroatom-doped porous structure of NHPC-5 and XPS survey spectra (b) in as-prepared samples.
Figure 4 | Scientific Reports
A schematic diagram (a) of the heteroatom-doped porous structure of NHPC-5 and XPS survey spectra (b) in as-prepared samples.
