Figure 2

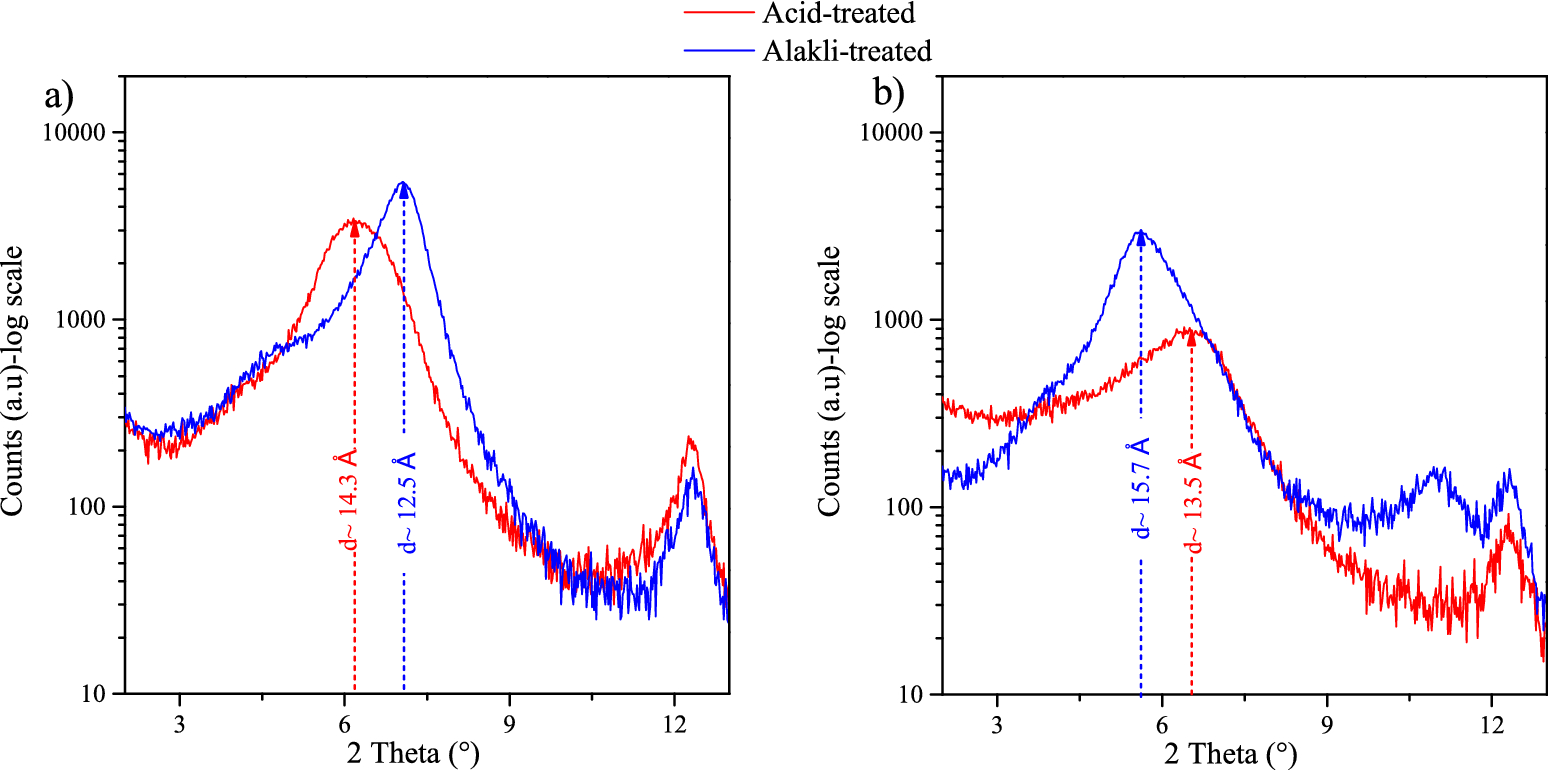

XRD patterns of oriented aggregates, air-dried, showing the basal reflections of treated nontronites, (a) without glycine and, (b) after glycine incorporation.
Figure 2 | Scientific Reports
XRD patterns of oriented aggregates, air-dried, showing the basal reflections of treated nontronites, (a) without glycine and, (b) after glycine incorporation.
