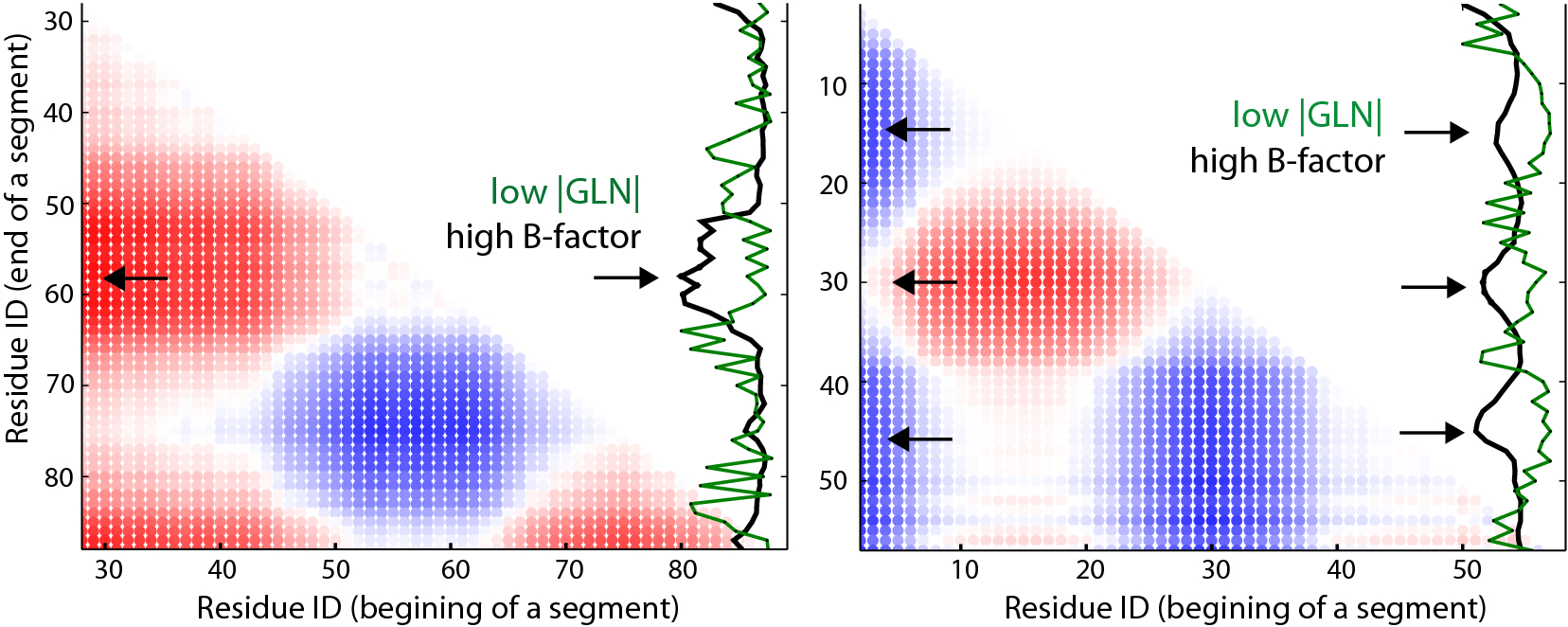

Figure 7

Correlation between GLN values and B-factors shown in the GLN matrices for proteins (left: pdb id 4ors, with the loop closed by amino acids 89-186, right: pdb id 2ehg, with the loop 58-145; matrices are for N-terminals), both of \(\hbox {gL}_3\) type. On the right edge of the matrix, B-factors are in black and |GLN| values between unit segments and whole loop are in green. Note that when a local |GLN| is high it usually means that the tail is just winding around the loop, which results in color changes on the left edge of the matrix. When local |GLN| is low, the tail is often far from the loop, not winding around it as significantly at that location.
