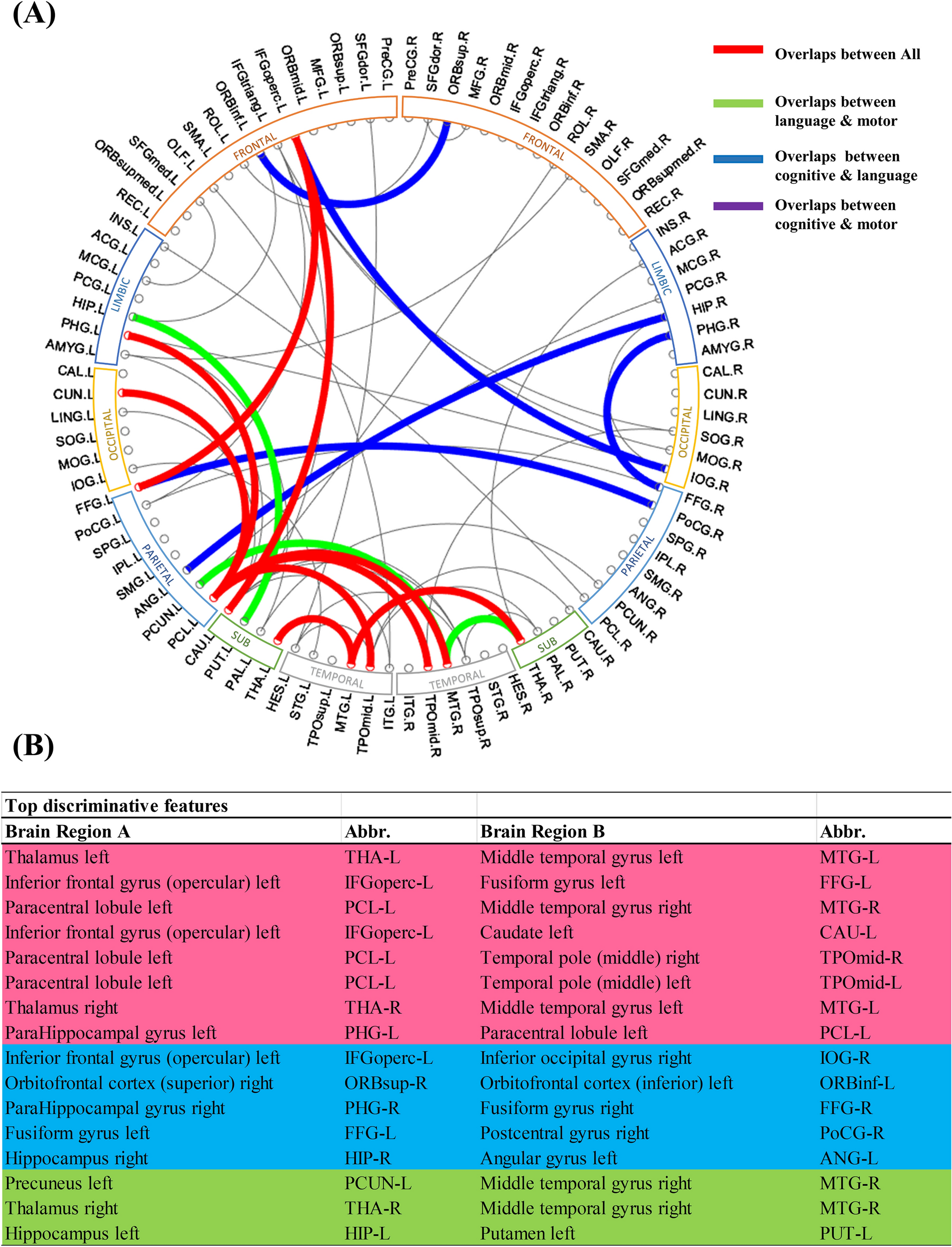

Figure 3
Top discriminative functional connectomes explored by our multi-task, multi-stage deep transfer learning model for each of the three neurodevelopmental outcomes. (A) The top 20 functional connections were displayed in the circos plot. (B) Overlapped connections were listed. We found 9 common connections predictive to all three outcomes (red), 12 common connections predictive to both language and motor outcomes (green, red); 14 common connections predictive to both cognitive and language outcomes (blue, red); and 9 common connections predictive to both cognitive and motor outcomes (covered by red).
