Figure 3
From: The future of endangered crayfish in light of protected areas and habitat fragmentation

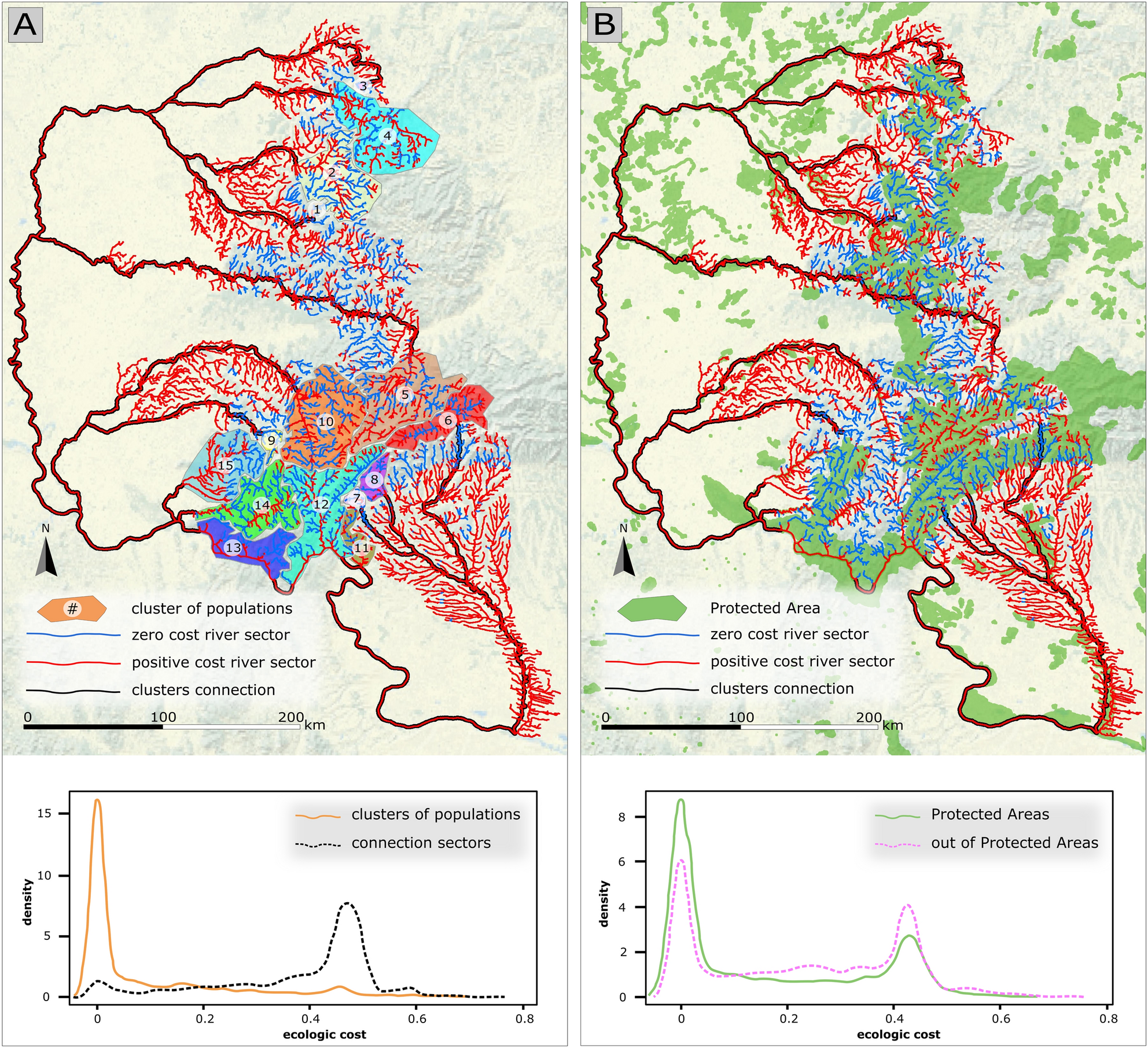

The river network corresponding to crayfish population clusters according to the ecological cost (A) and protected areas (B). The distribution of ecological costs on the river network within and between clusters of populations, and inside and outside of protected areas, is presented below maps (A) and (B), respectively.
