Figure 1

From: Enhancement of photovoltage by electronic structure evolution in multiferroic Mn-doped BiFeO3 thin films

Figure 1

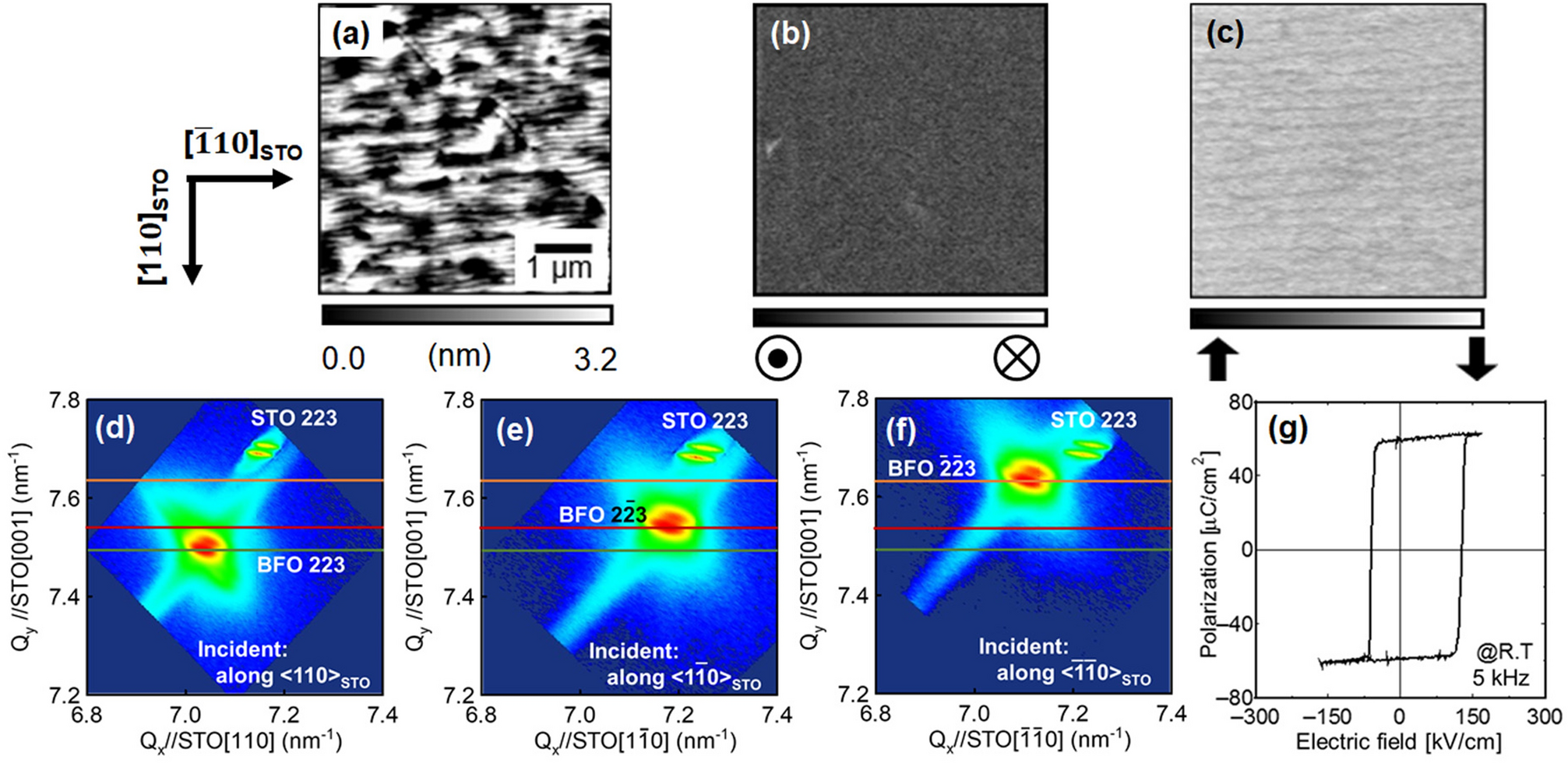

a Surface AFM image of 1 µm thick Mn 1 at%-doped BFO thin film grown on SRO-buffered STO, and b vertical- and c lateral-PFM images of the thin film. XRD-RSM around d BFMO 223, e BFMO 2\(\overline{2}\)3, and f BFMO \(\overline{2}\)\(\overline{2}\)3 diffraction spots. g Dielectric displacement–electric field hysteresis loop of the thin film measured at RT. Note that the BFMO thin film is a single crystal and shows an excellent ferroelectric D–E hysteresis loop.
