From: Individual differences in fear acquisition: multivariate analyses of different emotional negativity scales, physiological responding, subjective measures, and neural activation

Figure 1

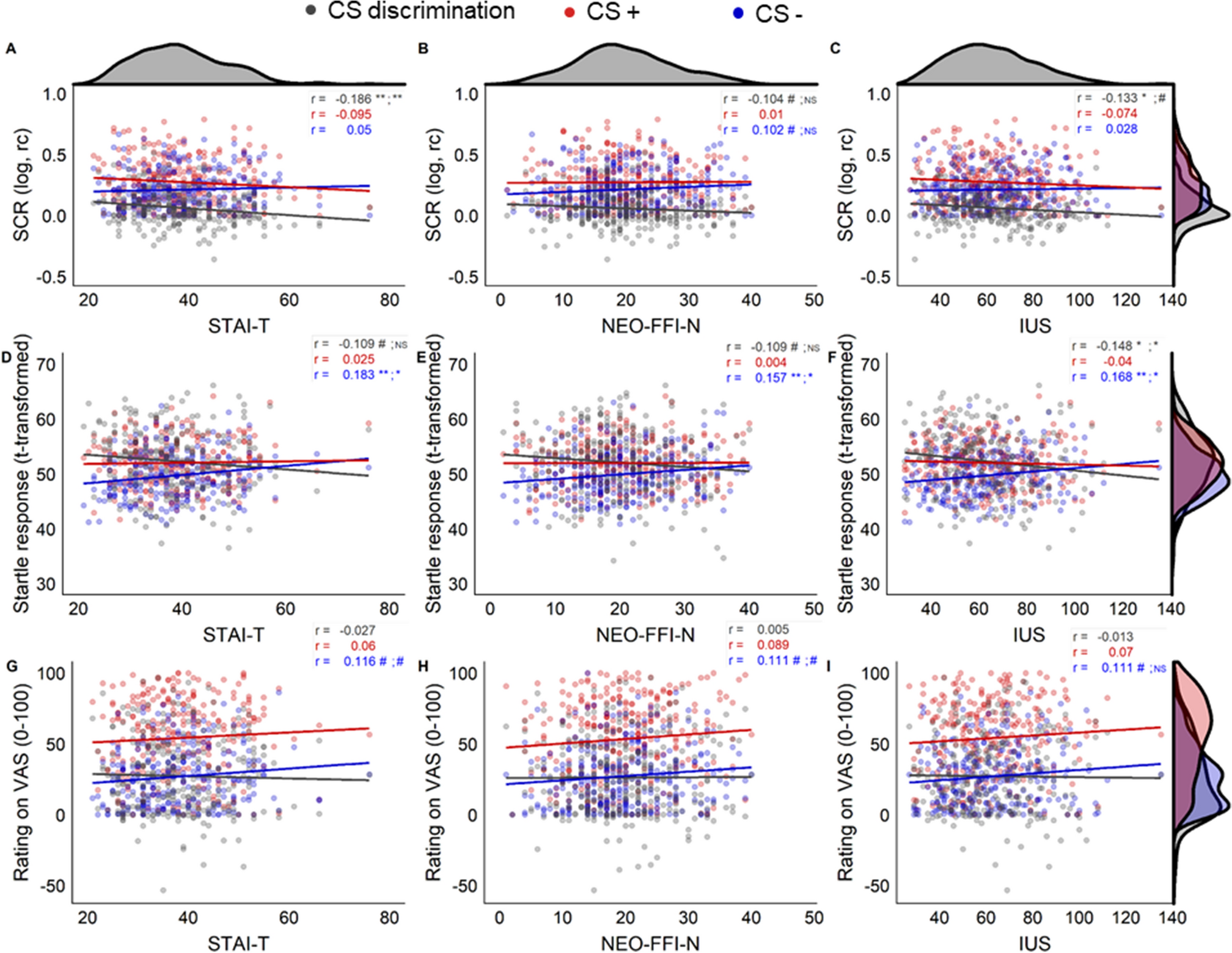

Scatterplots showing associations between the three independent variables, i.e., questionnaires/scales STAI-T (A,D,G), NEO-FFI-N (B,E,H), and IUS (C,F,I) and the three dependent variables, i.e., outcome measures SCR (skin conductance responses; A–C), startle responses (D–F), and ratings (G–I) for CS discrimination in grey, CS+ responding in red, and CS− responding in blue. Corresponding correlation coefficients (r) are displayed in corresponding colors, #p < 0.1, *p < .05, **p < 0.01 for raw and Benjamini Hochberg (BH) adjusted p values separated by a semicolon. NS or blank spaces indicate p > 0.1. Density distributions of scores on the questionnaires are displayed on top of the figure, density distribution per stimulus type (CS+, CS−) and for CS discrimination are displayed on the right side of the figure for each dependent variable (SCR, startle, ratings). Note that the scale of CS discrimination values for startle responding are transformed with + 50 for illustrative purposes to ease comparison with CS+ and CS− startle responding.
