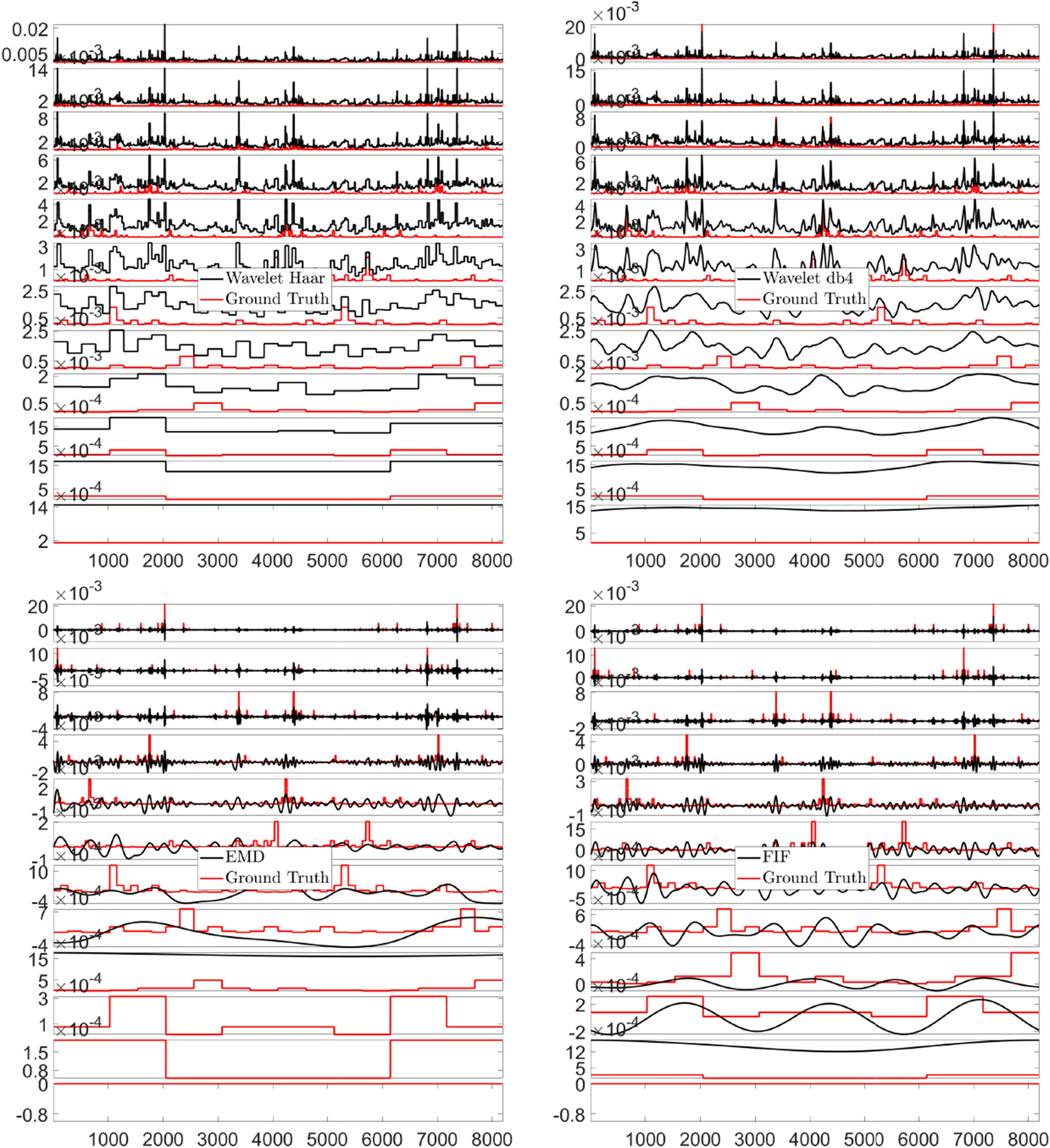

Figure 5

Stochastic signals—P-model Example. From Top left to Bottom right corner, Haar and db4 Wavelet, EMD and FIF decompositions, respectively. In solid red the corresponding ground truth \(u_{k}\) generations. In each panel, the x-axis plots the sample points, and the y-axis the IMFs ordered from top to bottom.
