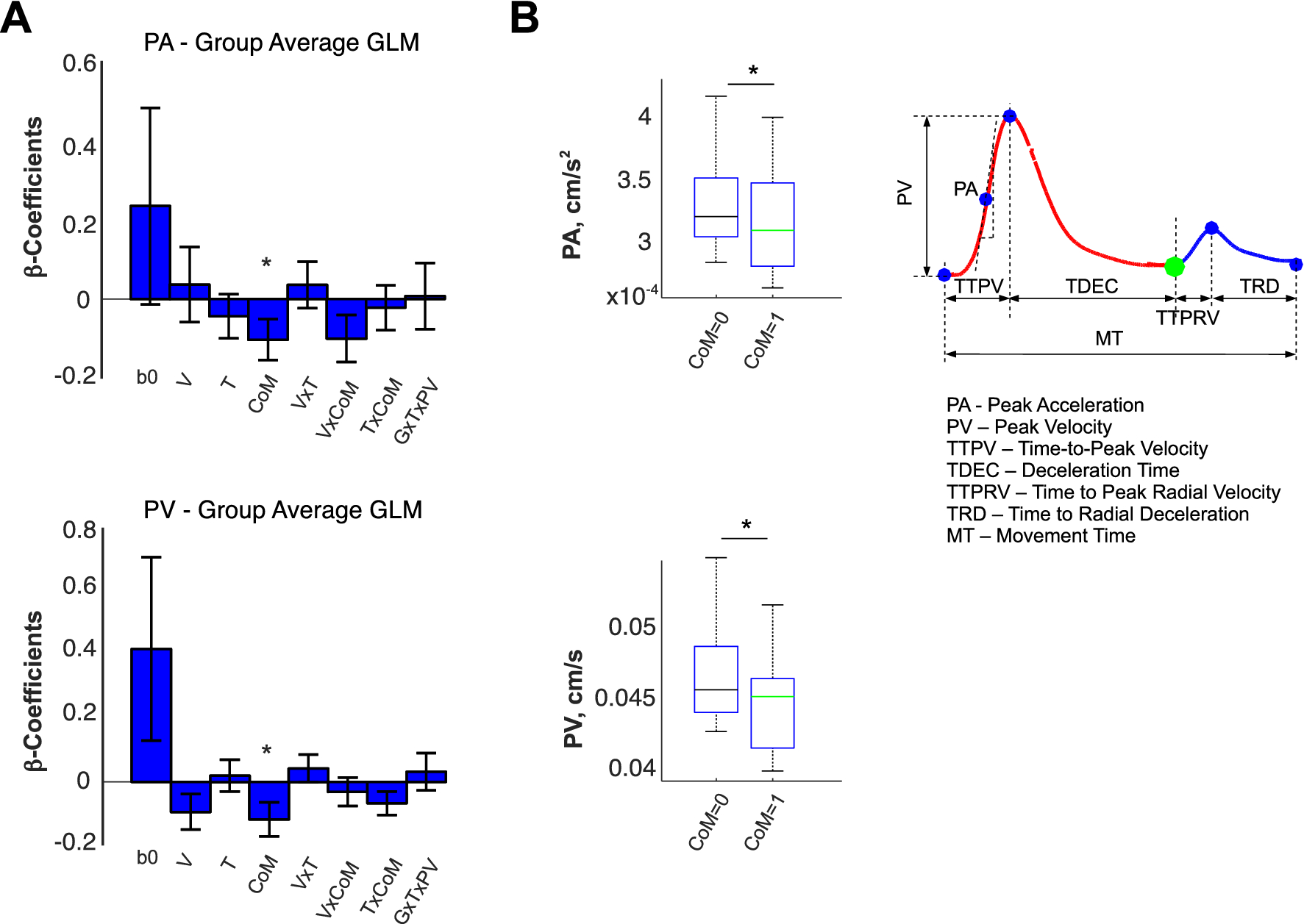

Figure 6
From: Visual-reward driven changes of movement during action execution
(A) Group average and standard deviation of the β-regression coefficients of GLMs performed on the Peak Velocity (PV) and the Peak Acceleration (PA), as a function of three factors: Visual reward (V), time of presentation of the second distribution of visual reward (T), a binary variable indicating whether there was a CoM, and their covariates; we included the offset coefficient (β0) for completion. Both PA (p = 0.031) and PV (p = 0.021) were sensitive to CoM, but not to V or T. (B) PV and PA as a function of CoM.
