Figure 4

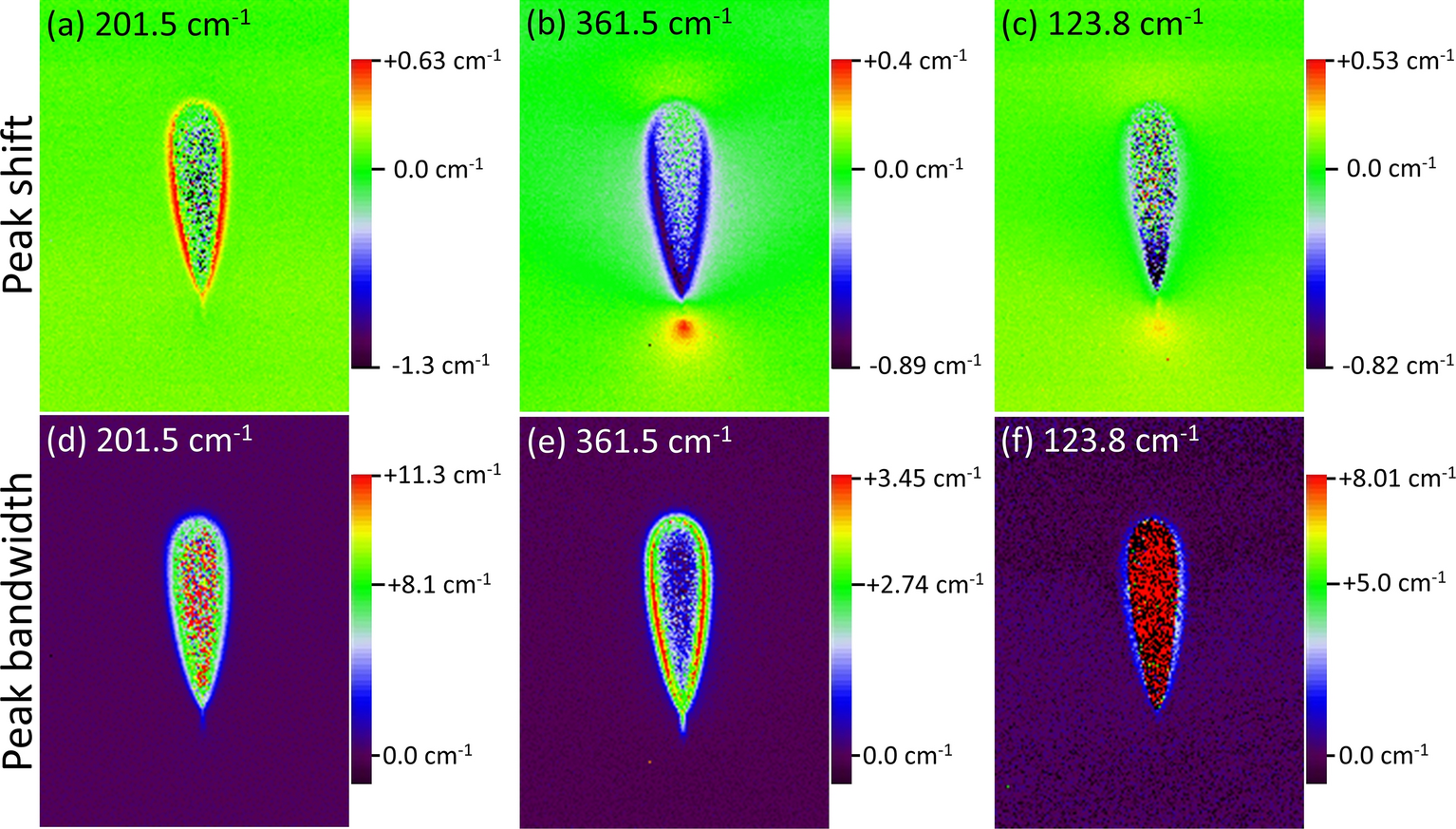

Raman maps of waveguide written at 90 nJ with 1,000 mm/min feed rate. First row shows shift in frequency and the bottom row the full-width at half maximum bandwidth (FWHM). Each map corresponds to an area of \(30\times 40\,\upmu {\text {m}}\).
