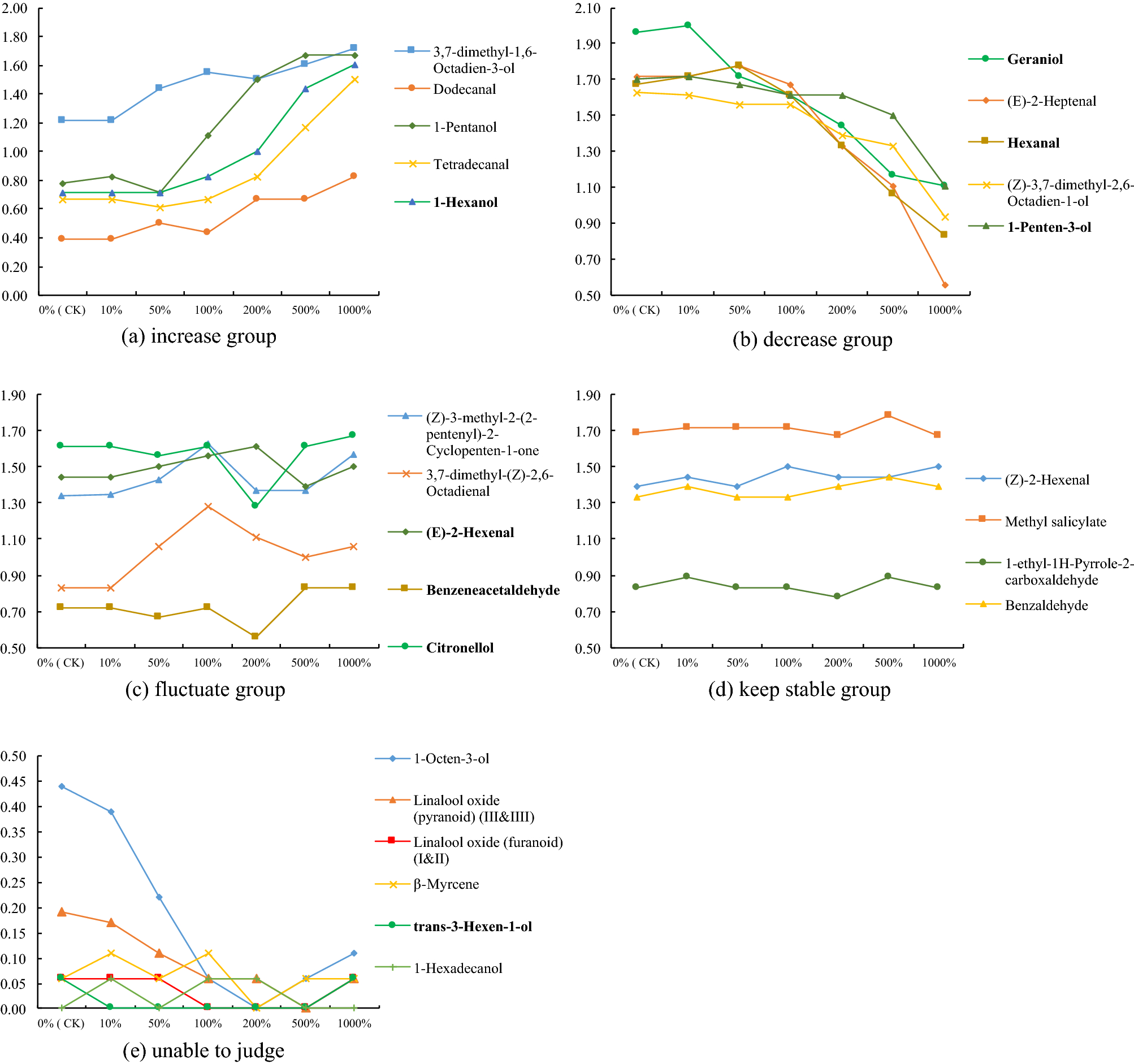

Figure 3
From: Characterization of the effect of cis-3-hexen-1-ol on green tea aroma
Effect of (Z)-3-hexen-1-ol on the aroma intensity of other aroma components in aroma monomer system. (a) The concentration of each aroma component was set to the concentration detected in sample E (Table 1); (b) the content of (Z)-3-hexen-1-ol in sample E was 100% (0.04 mg kg−1), thus "10%" was 0.004 mg kg−1, "50%" was 0.02 mg kg−1, "100%" was 0.04 mg kg−1, "200%" was 0.08 mg kg−1, "500%" was 0.2 mg kg−1, "1,000%" was 0.4 mg kg−1; (c) "Increase" means that the score of aroma intensity was significantly higher than CK at "1,000%", "decrease" means that the score was significantly lower than CK at "1,000%", "fluctuate" means that the score changed significantly during the process, but the difference between "1,000%" and CK was not significant, "keep stable" means that the difference of all concentrations is not significant; “unable to judge” means the score of the aroma component at all concentrations was less than 0.5, so the evaluation team can't accurately judge the change trend.
