Figure 2
From: Burn resuscitation strategy influences the gut microbiota-liver axis in swine

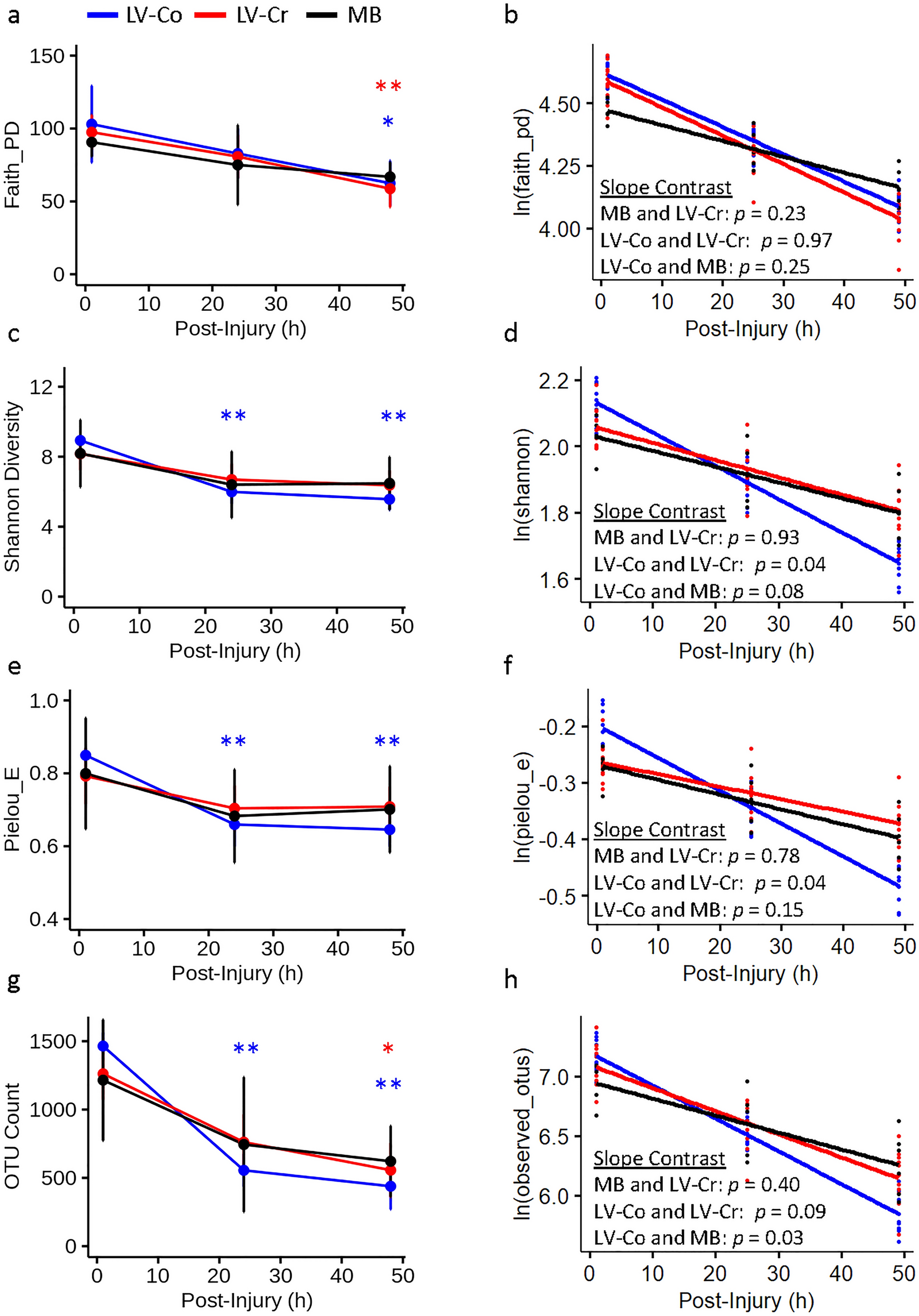

Impact of resuscitation on bacteria alpha diversity. (a, b) Faith phylogenetic diversity, (c, d) Shannon diversity, (e, f) Pielou evenness, and (g, h) OTU counts. (a, c, e, g) Raw diversity values with each point depicting the mean and bars representing 95% CI. Within treatment differences between post-injury (24 h and 48 h) and respective baseline time-points were evaluated with two-sided Wilcoxon rank sum test with Holm family-wise error rate correction at α = 0.05. Statistical significance is indicated by text and symbol colors corresponding to the resuscitation strategy. *: p < 0.05; **: p < 0.01 with actual p values indicated in text. (b, d, f, h) LME model predicted values and regression line after normalization of the data. Each data point depicts the predicted value of an individual sample. Comparison of regression slopes and p value calculations were evaluated by LME models. MB (n = 6 pigs), LV-Co (n = 10 pigs), and LV-Cr (n = 11 pigs).
