Figure 1

From: Structural polymorphisms in fibrillar aggregates associated with exfoliation syndrome

Figure 1

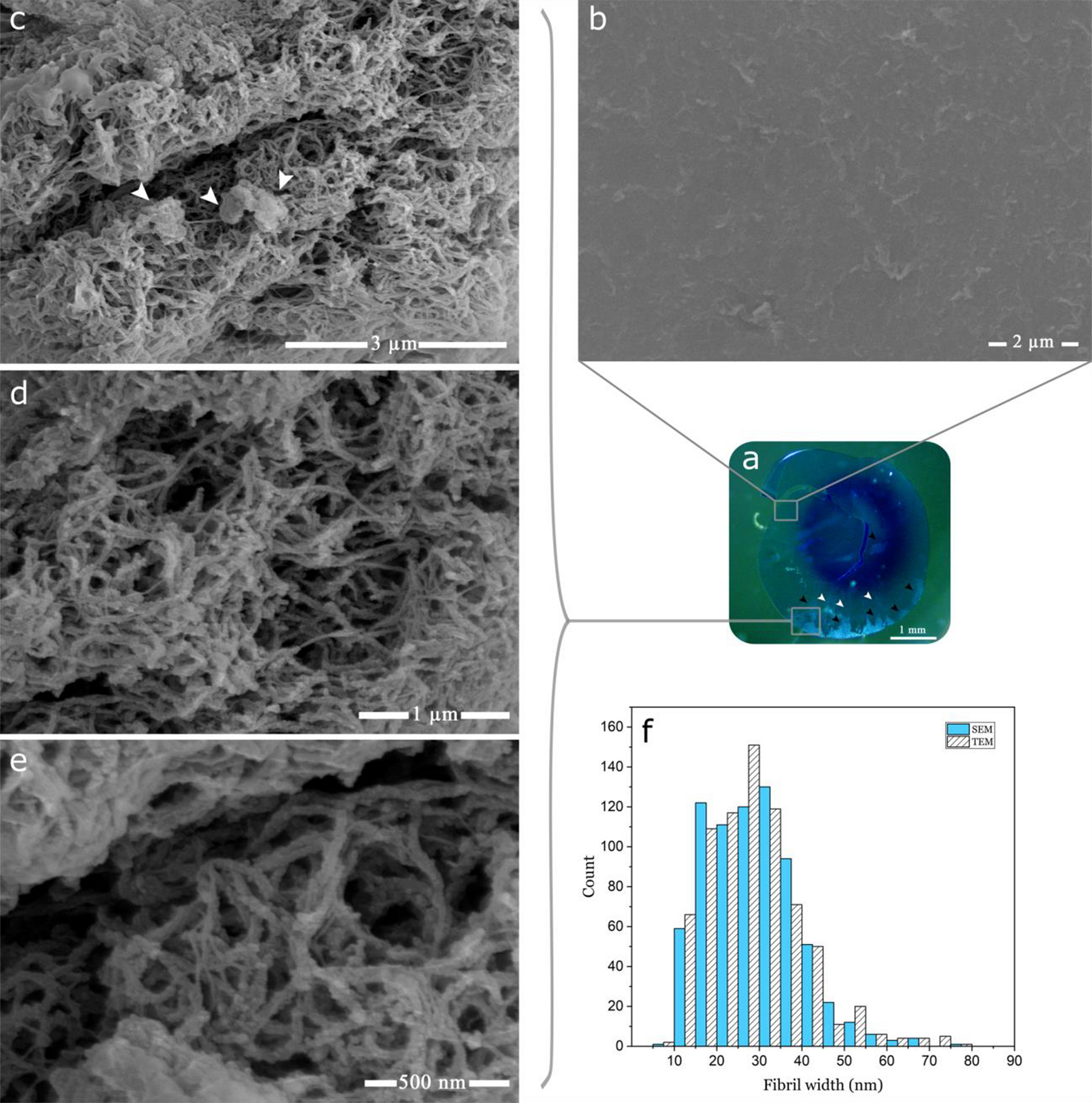

Micrographs of the anterior surfaces of lens capsules excised from XFS patients. (a) Lens capsule under stereomicroscope (black arrows indicate XFS deposits, white arrows indicate the junctions between intermediate and peripheral zones). (b) SEM micrograph of a non-XFS rich capsule location. (c–e) SEM micrographs of XFS fibrils found on the capsule surface. (f) Diameter distribution of XFS fibrils on the capsule surface as observed using SEM and TEM.
