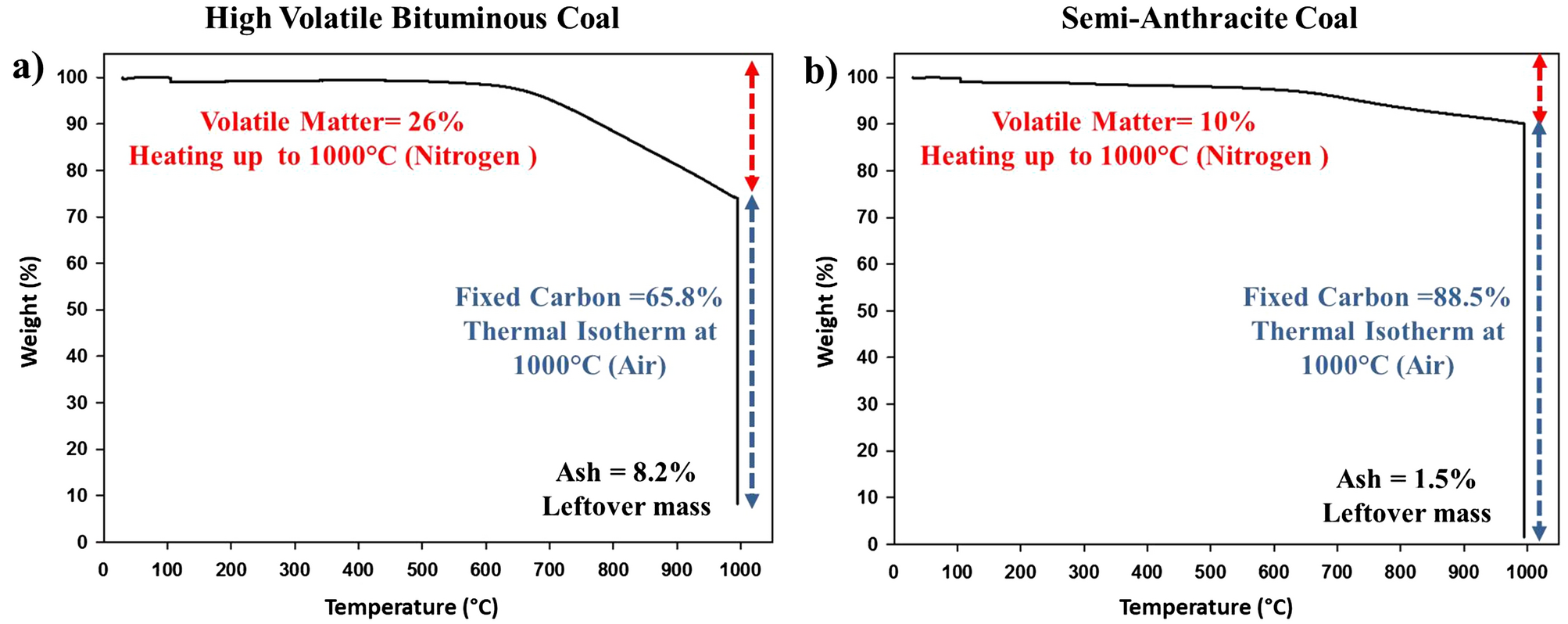

Figure 1
From: Towards valorizing natural coals in sodium-ion batteries: impact of coal rank on energy storage
TGA curves presenting the weight variation as a function of temperature for: (a) High volatile bituminous coal and (b) Semi-anthracite coal.
