Figure 3
From: Towards valorizing natural coals in sodium-ion batteries: impact of coal rank on energy storage

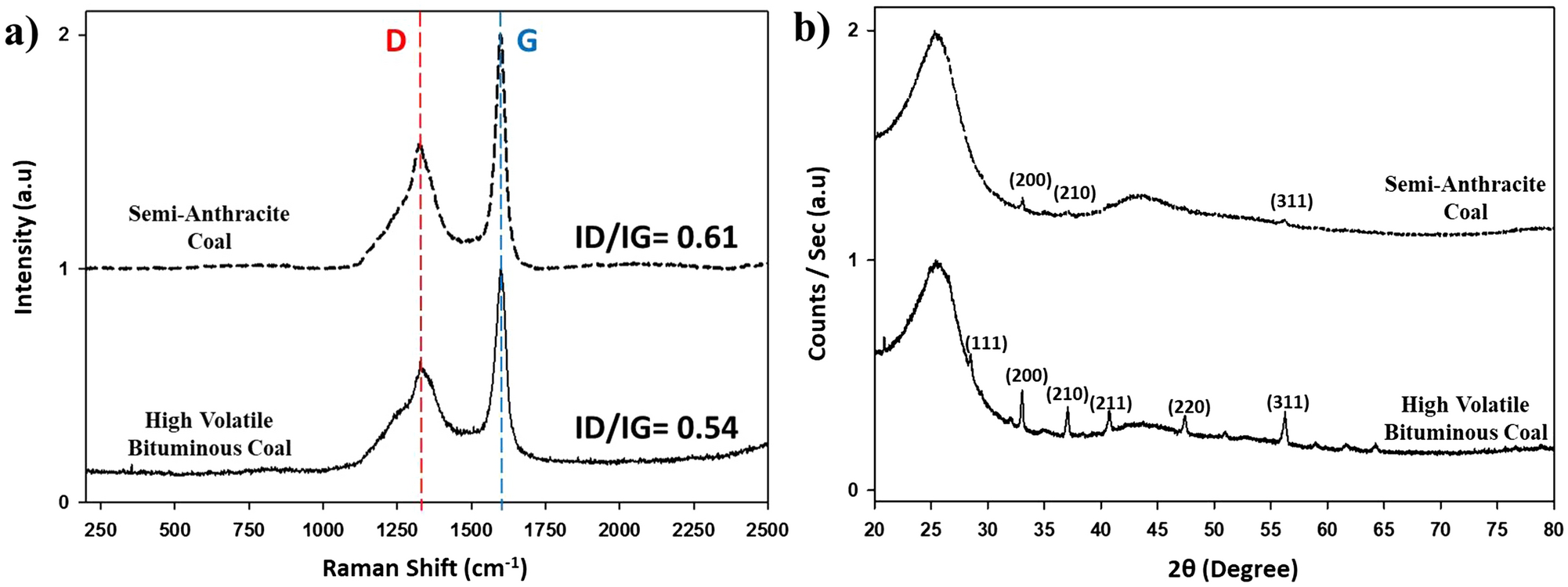

(a) Raman spectra and (b) XRD spectra for high volatile bituminous (black lines) and semi-anthracite coals (dashed black lines).
