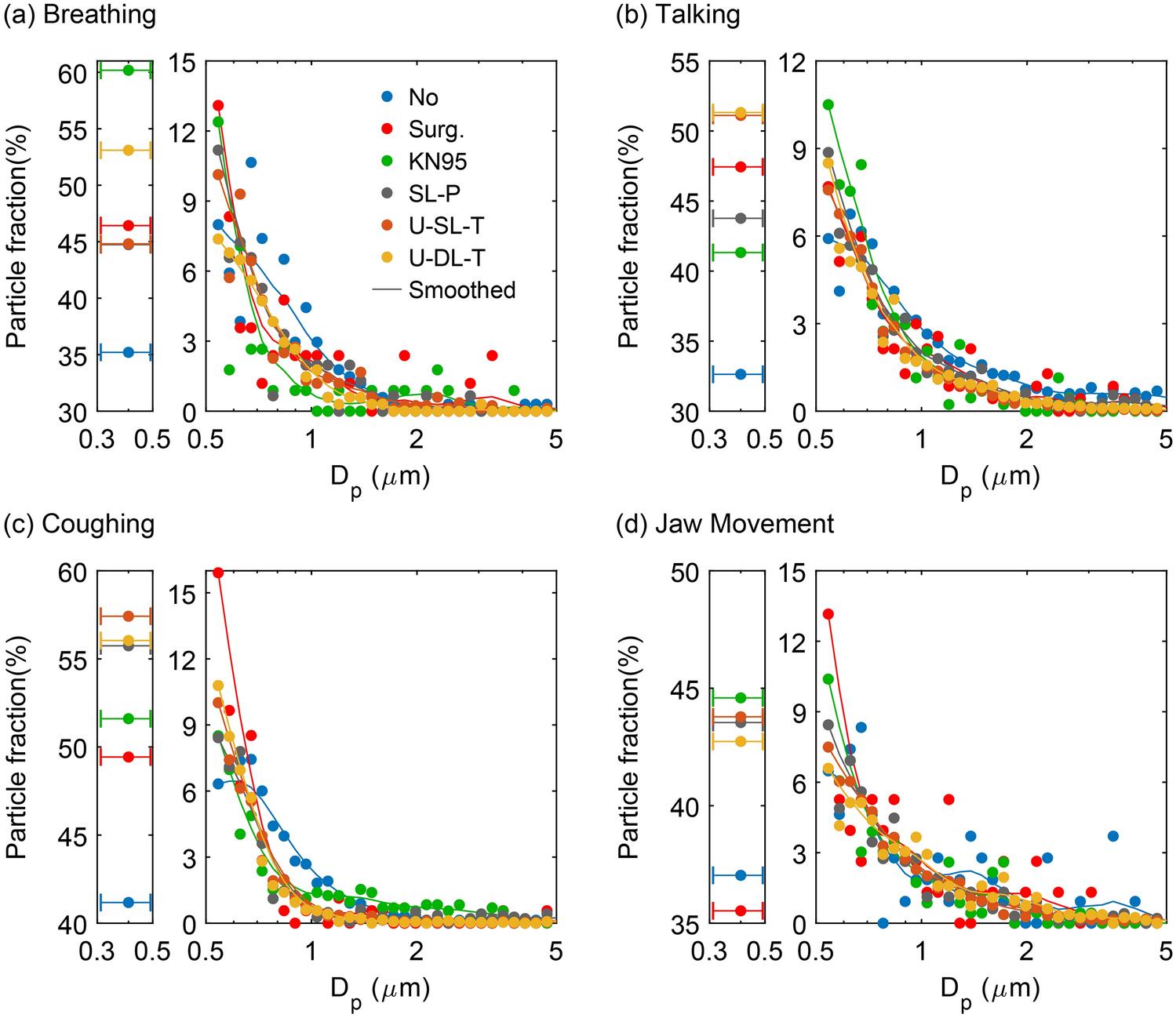

Figure 3
Observed particle size distributions, normalized by particles/s per bin, associated with (a) breathing, (b) talking, (c) coughing, and (d) jaw movement when participants wore no mask or one of the five mask types considered. Each curve is the average over all 10 participants. The solid lines represent the data using a 5-point smoothing function. Data points with horizontal error bars show the small particles ranging from 0.3 to 0.5 μm in diameter detected by APS with no further information about their size distribution in this range. Surg.: surgical; KN95: unvented KN95; SL-P: single-layer paper towel; U-SL-T: unwashed single-layer cotton t-shirt; U-DL-T: unwashed double-layer cotton t-shirt; N95: vented N95.
