Figure 2
From: A new isolation device for shortening gene flow distance in small-scale transgenic maize breeding

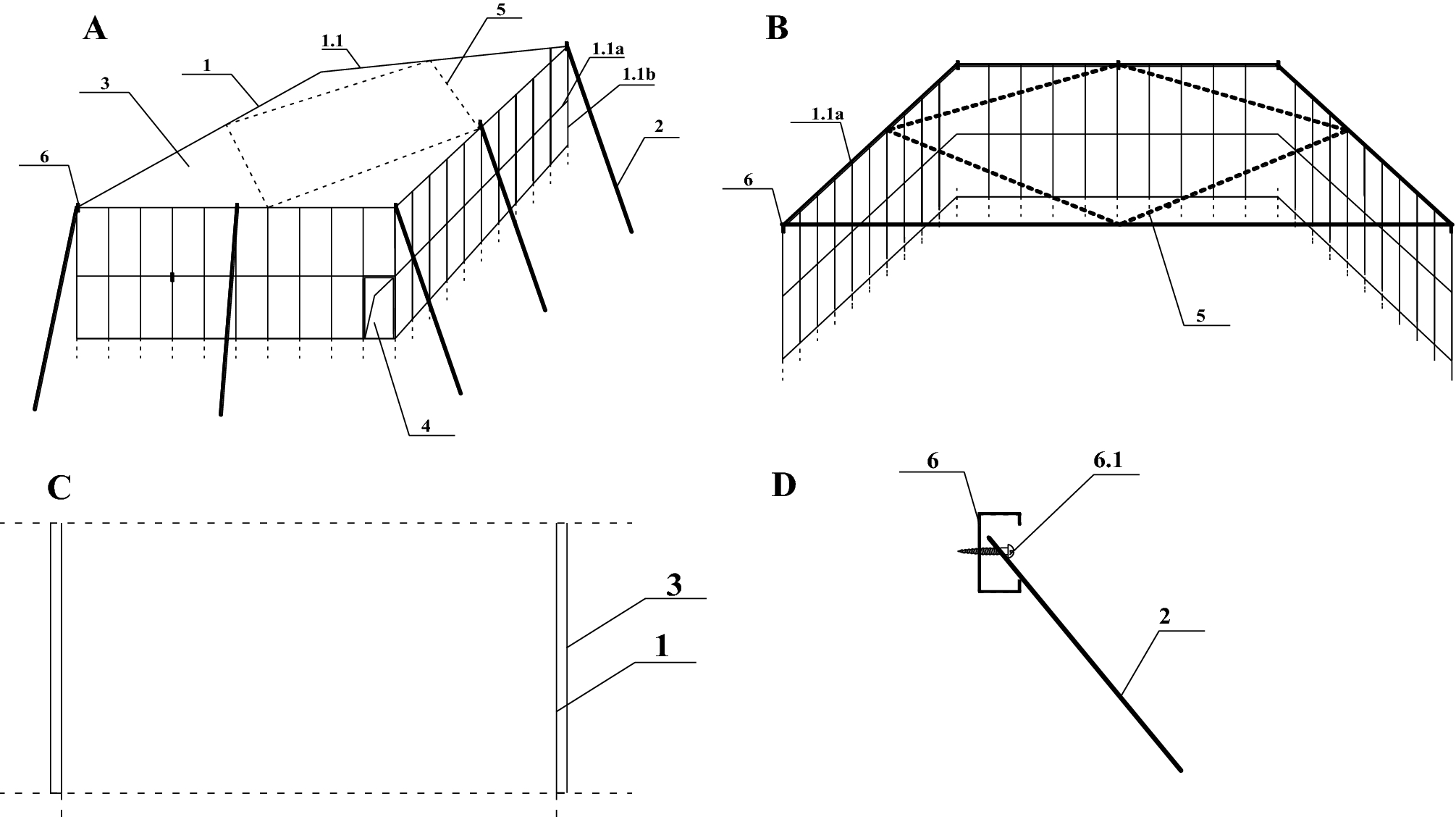

Isolation device for natural ecological risk control of GM maize. (A) Schematic of the isolation device; (B) partial diagram of the isolation device; (C) sectional view of figure (B); (D) structural detail diagram of the square card; 1: rectangular steel frame, 1.1: steel frame wall, 1.1a: horizontal steel rod, 1.1b: vertical steel rod, 2: inclined support rod, 3: colored steel plate, 4: door for entry and exit, 5: hot-dip galvanized steel frame. 6: structure of the square card, 6.1: screw.
