Figure 5
From: Complex barite filter cake removal using in-situ generated acids by thermochemicals

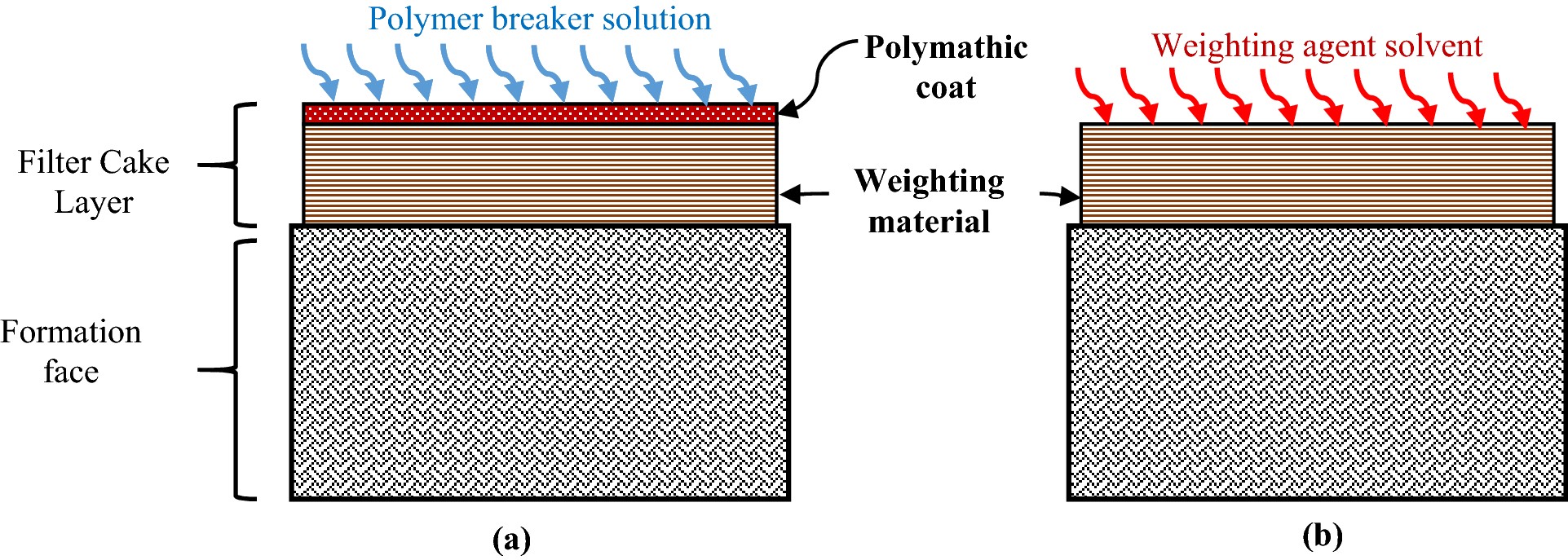

Schematic of filter cake consist of two layers (polymeric layer and weighting material). The removal process (a) breaks the polymer coated layer (thermochemical solution) and (b) dissolves the main filter cake layer (weighting material).
