Figure 6
From: Complex barite filter cake removal using in-situ generated acids by thermochemicals

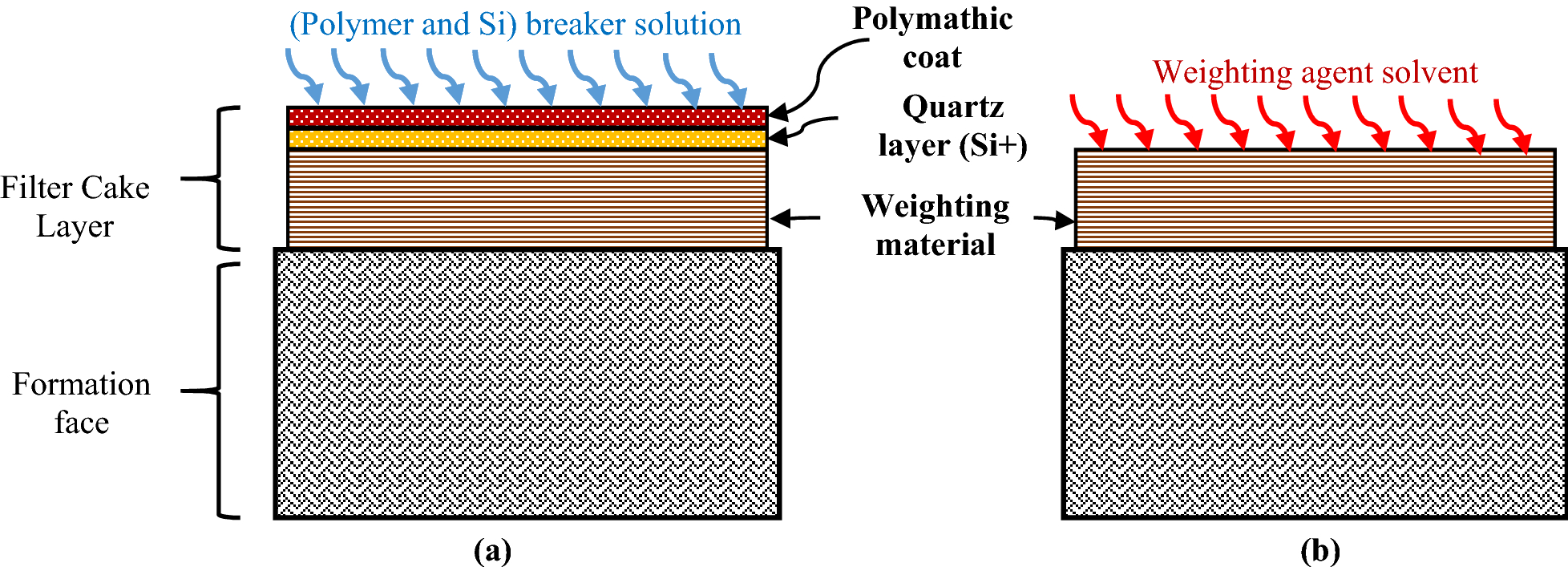

Schematic of filter cake consist of two layers (polymeric layer, fine cuttings accumulated in filter cake (quartz layer Si +), and weighting material). The removal process (a) breaks the polymer coated layer and quartz layer (thermochemical solution) and (b) dissolves the main filter cake layer (weighting material).
