From: Nephronophthisis gene products display RNA-binding properties and are recruited to stress granules

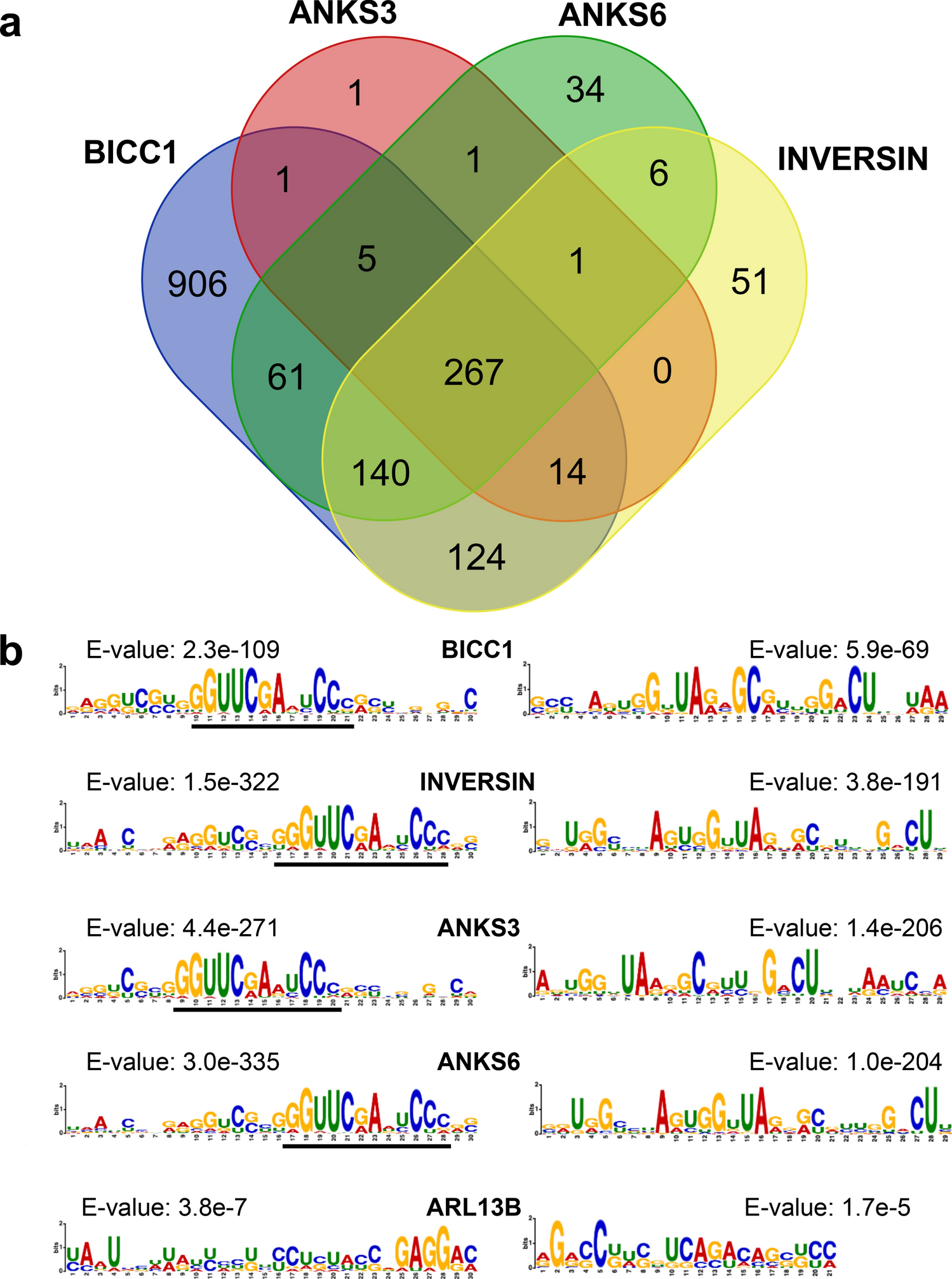

RNA interaction with BICC1 and the ankyrin-repeat proteins ANKS3, ANKS6 and INVERSIN. (a) Venn diagram (www.bioinformatics.psb.urgent.be/webtools/Venn/), representing the overlap between RNA molecules interacting with BICC1, ANKS3, ANKS6 and INVERSIN. (b) The top two binding motifs for BICC1, INVERSIN, ANKS3, and ANKS6. Two putative binding motifs were also identified for ARL13B, albeit with much lower statistical significance. No significant binding motif (p < 0.05) was identified for BBS3.
