Figure 2

From: Association of left atrial pressure with late gadolinium enhancement extent in patient who underwent catheter ablation for atrial fibrillation

Figure 2

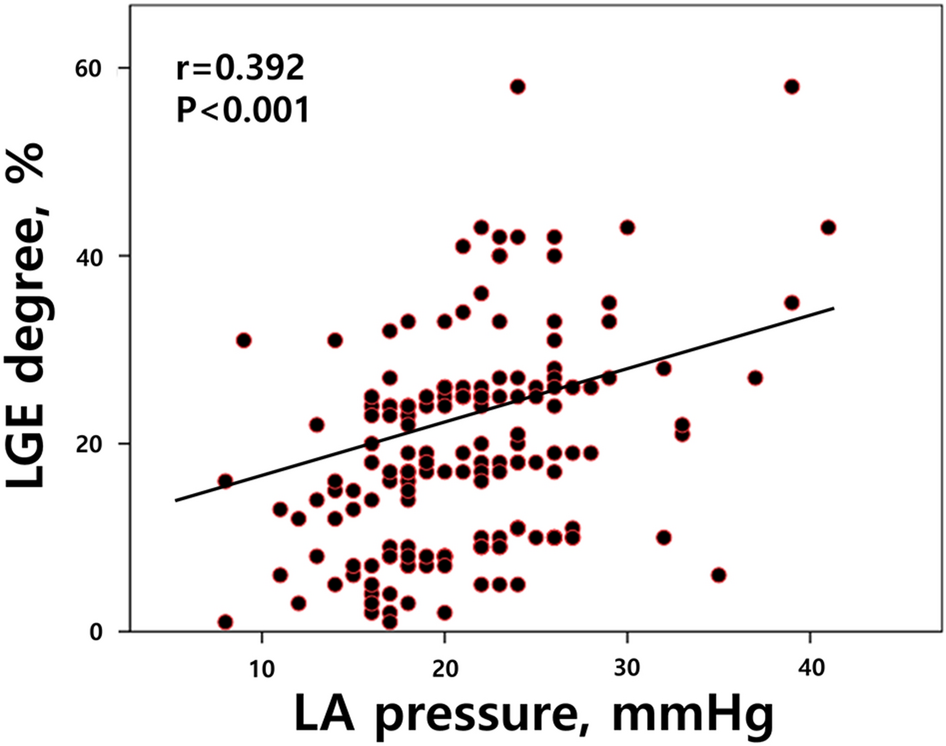

The relationship between measured left atrial pressure and late gadolinium enhancement (LGE) extent in cardiac magnetic resonance. Each point on the plots represents a value of the LGE extent in one patient. R and P represent Pearson's correlation coefficients and the corresponding P-values. LA left atrial, LGE late gadolinium enhancement, LA pressure left atrial pressure.
