Figure 13

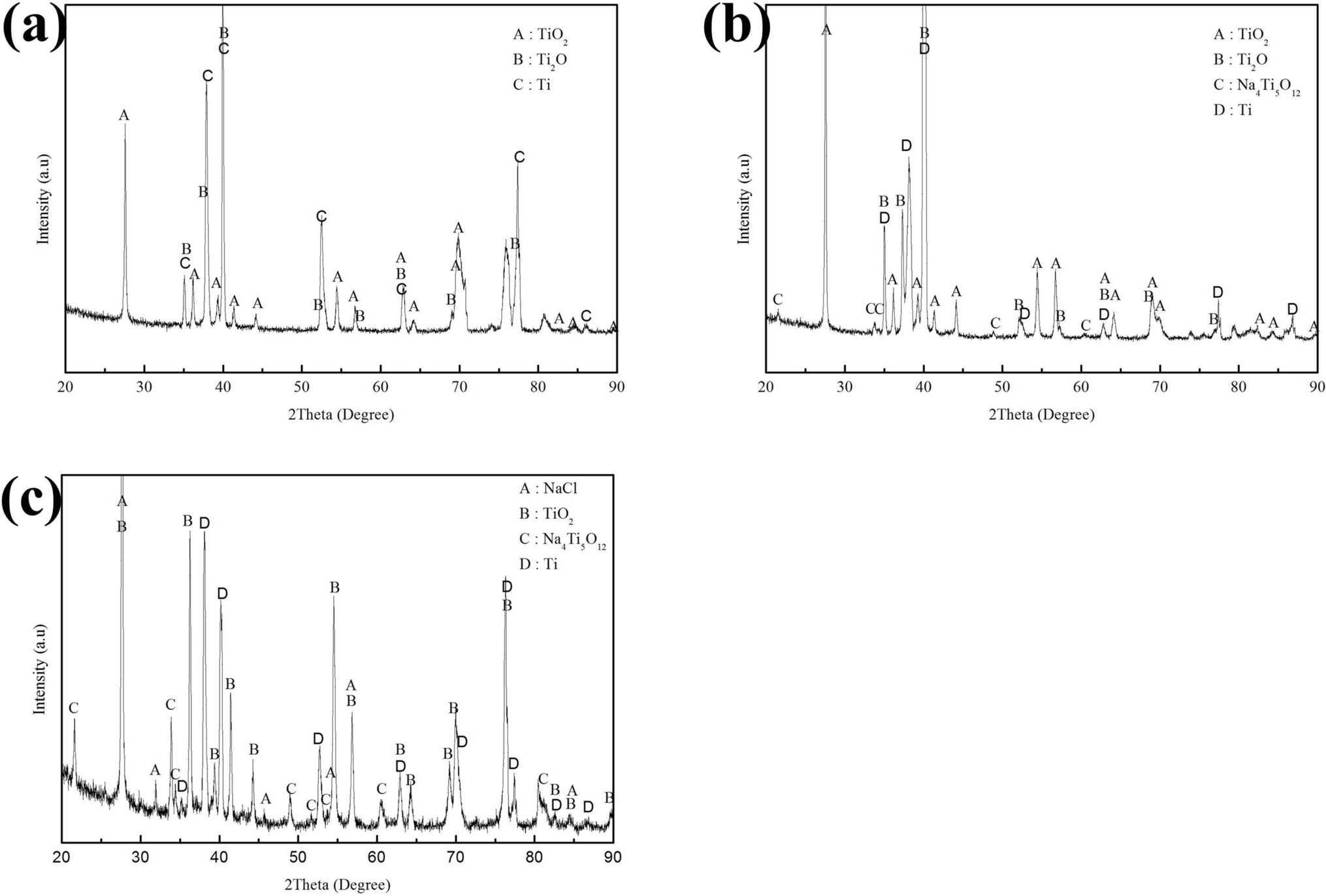

X-ray diffraction patterns of the pre-oxidized samples after exposed in NaCl + H2O + O2 for 1 h (a), 5 h (b) and 20 h (c).
Figure 13 | Scientific Reports
X-ray diffraction patterns of the pre-oxidized samples after exposed in NaCl + H2O + O2 for 1 h (a), 5 h (b) and 20 h (c).
