Figure 1 | Scientific Reports

Figure 1

From: An association study of C9orf3, a novel component of the renin-angiotensin system, and hypertension in diabetes

Figure 1

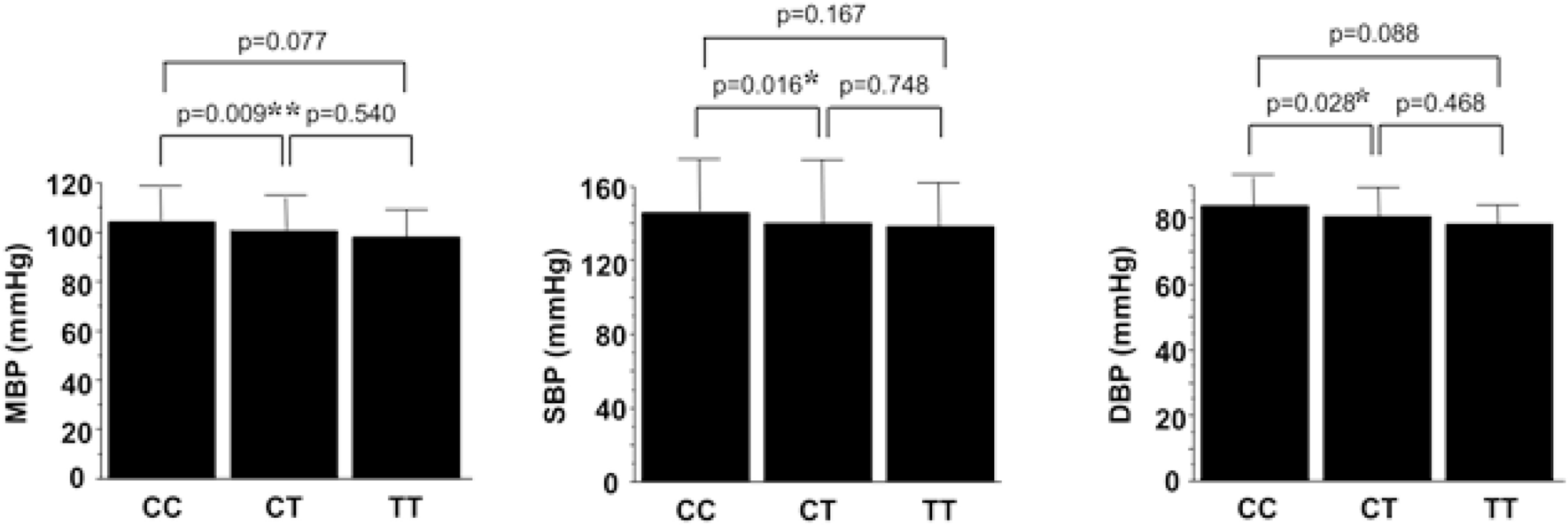

C9orf3 genotypes and corresponding blood pressure readings. Closed columns and bars indicate the means and standard deviations of blood pressure readings. For mean blood pressure (MBP), the values of each genotype were as follows: CC, 104.5 ± 13.5, CT, 100.6 ± 13.5, and TT, 98.4 ± 11.2 mmHg, respectively. For systolic blood pressure (SBP), the values of each genotype were as follows CC, 146.0 ± 20.7, CT, 140.2 ± 21.9, and TT, 138.4 ± 18.2 mmHg, respectively. For diastolic blood pressure (DBP), the values of each genotype were as follows CC, 83.8 ± 12.6, CT, 80.8 ± 12.1, and TT, 78.4 ± 10.4 mmHg, respectively. *p < 0.05 for the comparison with CC; **p < 0.01 for the comparison with CC.
