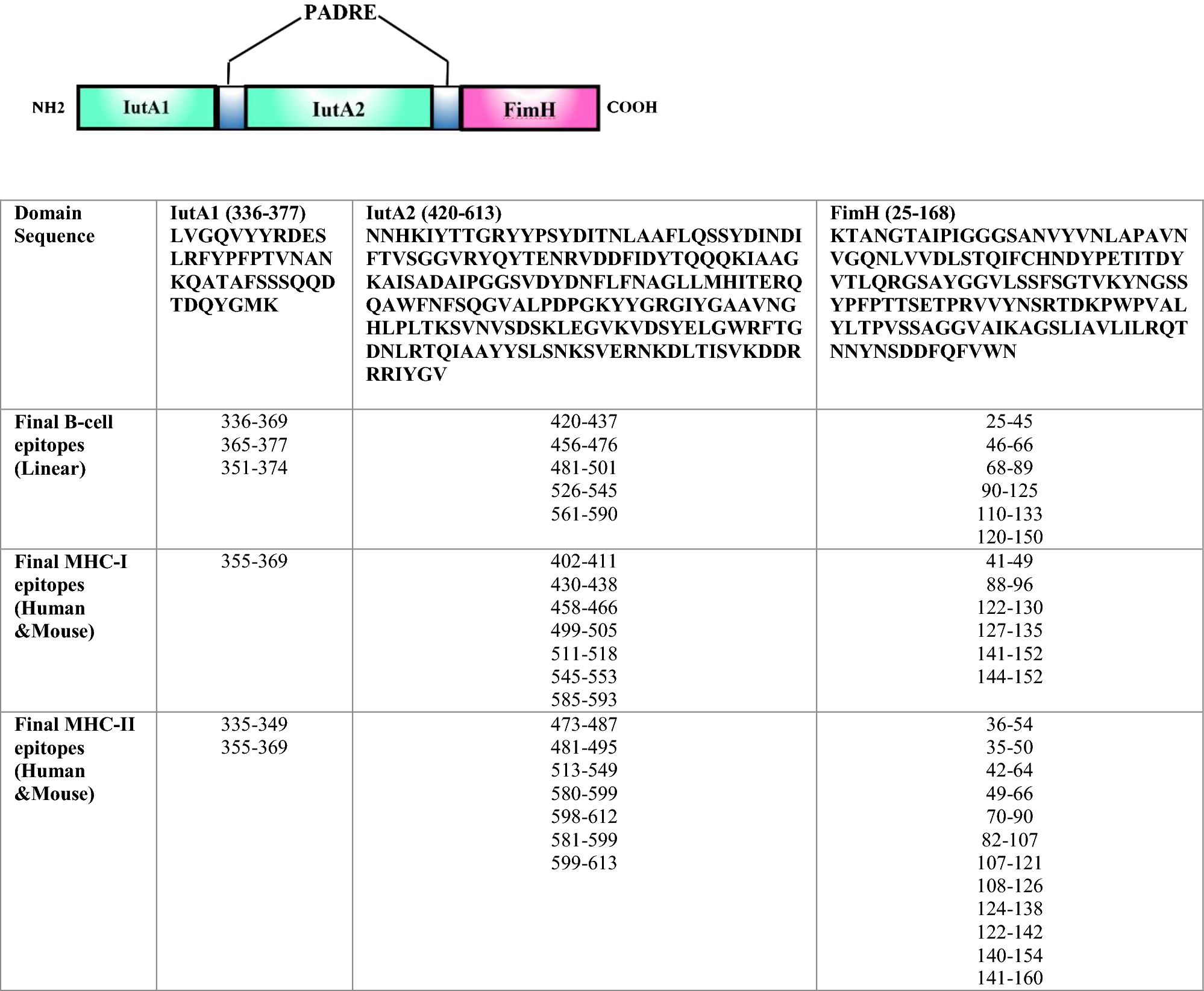

Figure 1

Details of the domain sequences and B- and T- cell epitopes of IutA and FimH in the final construct linked together with PADRE linkers.

Details of the domain sequences and B- and T- cell epitopes of IutA and FimH in the final construct linked together with PADRE linkers.
