Figure 6 | Scientific Reports

Figure 6

From: Food-borne Lactiplantibacillus plantarum protect normal intestinal cells against inflammation by modulating reactive oxygen species and IL-23/IL-17 axis

Figure 6

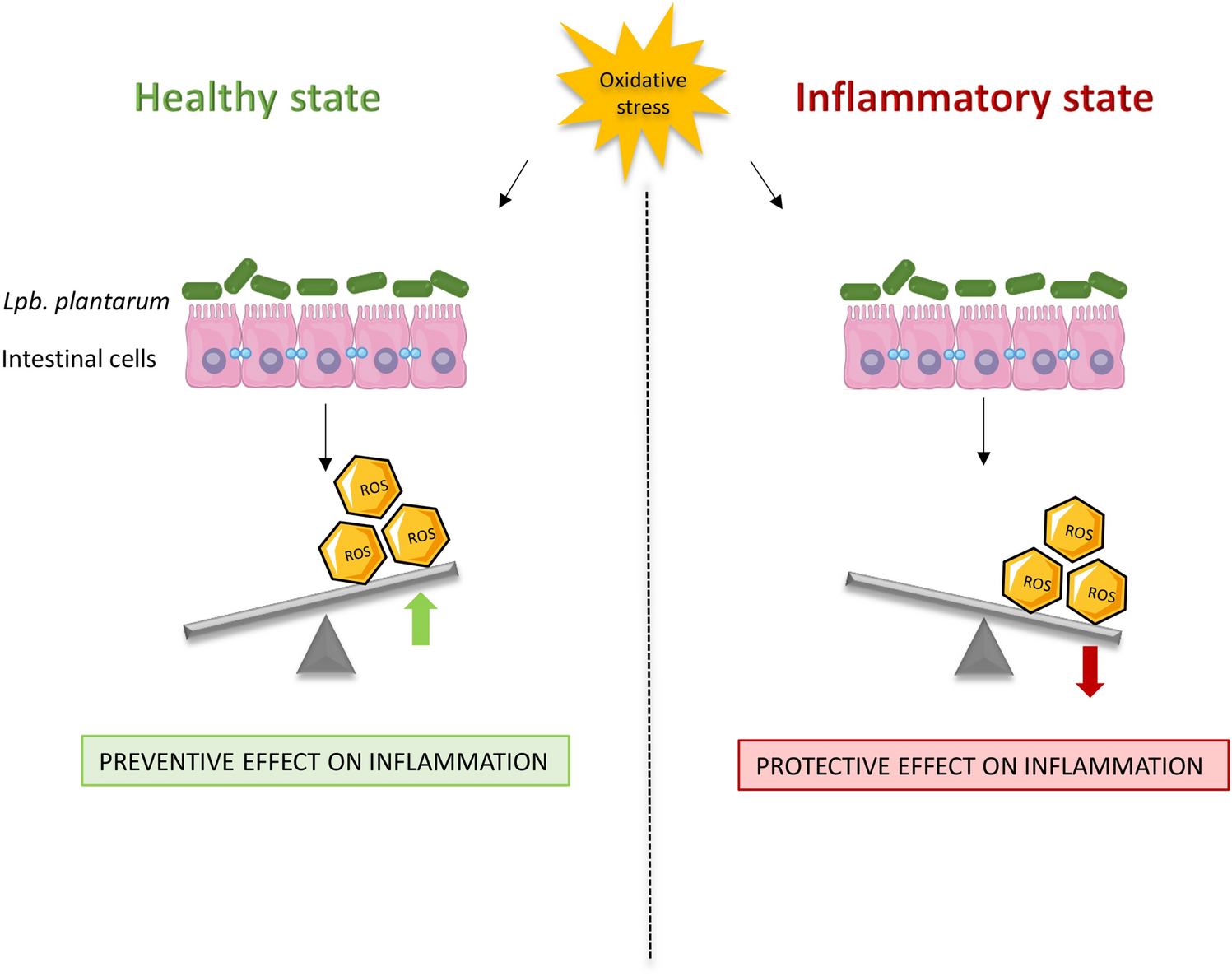

Schematic representation of the speculated effects of Lpb. plantarum on ROS production by healthy and inflamed intestinal cells upon oxidative stress. Graphical illustrations were created by using some graphical elements from Servier Medical Art by Servier, available on https://smart.servier.com/ under a Creative Commons Attribution 3.0 Unported License.
