Figure 2 | Scientific Reports

Figure 2

From: Comparison of inspiratory and expiratory lung and lobe volumes among supine, standing, and sitting positions using conventional and upright CT

Figure 2

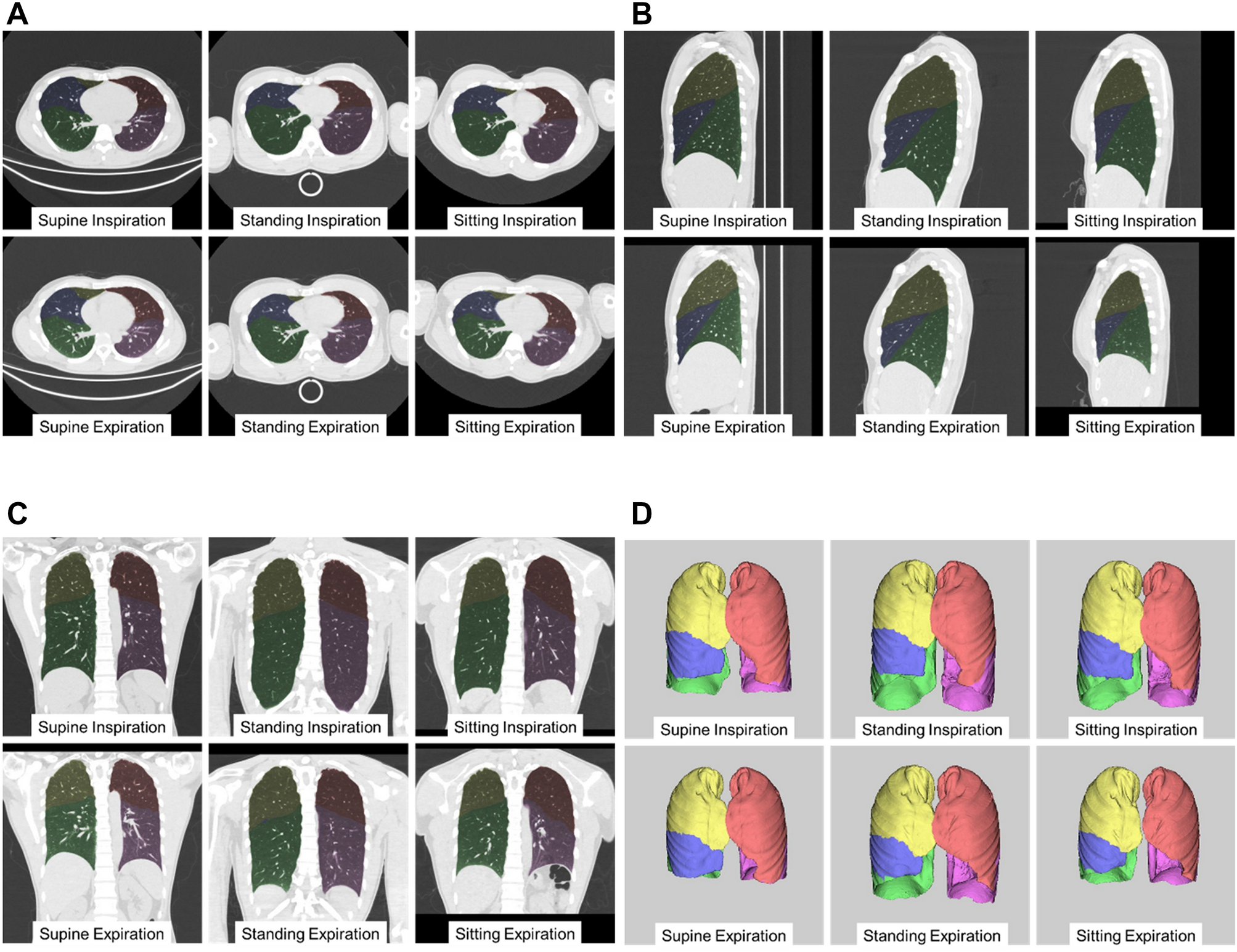

Representative segmentation and inspiratory/expiratory lung/lobe volume measurement in a 39-year-old male subject: axial (A), sagittal (B), and coronal (C) images, and volume rendering images (D) acquired in the supine, standing, and sitting positions. Yellow is the right upper lobe, blue is the right middle lobe, green is the right lower lobe, pink is the left upper lobe, and purple is the left lower lobe.
