Figure 5
From: Fast and antibiotic free genome integration into Escherichia coli chromosome

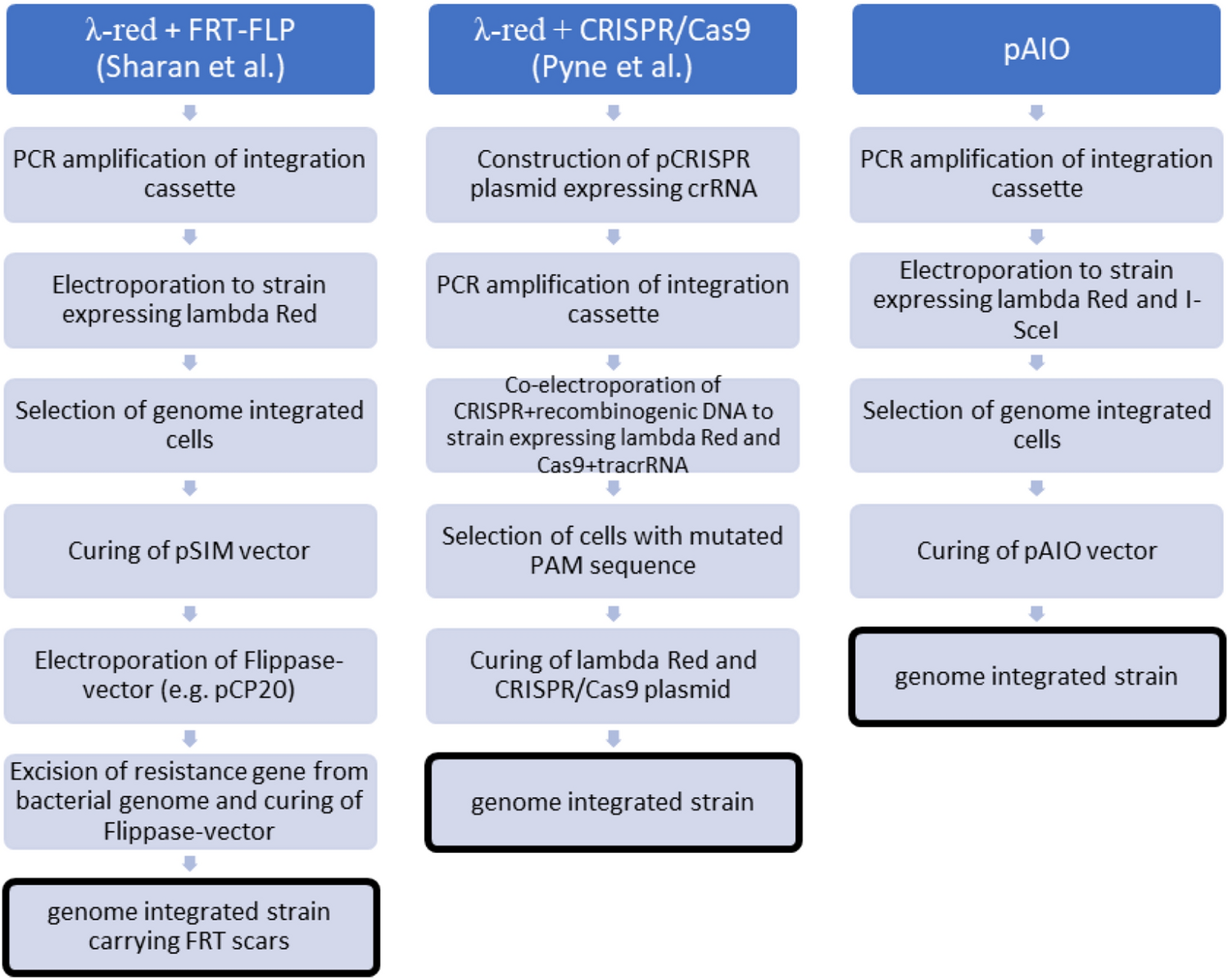

Schematic workflow of pAIO integration protocol and comparison to other integration methods. Genome integration according to the protocol of Sharan et al. (left), the method of Pyne et al. (middle) and the pAIO system (right) are compared.
