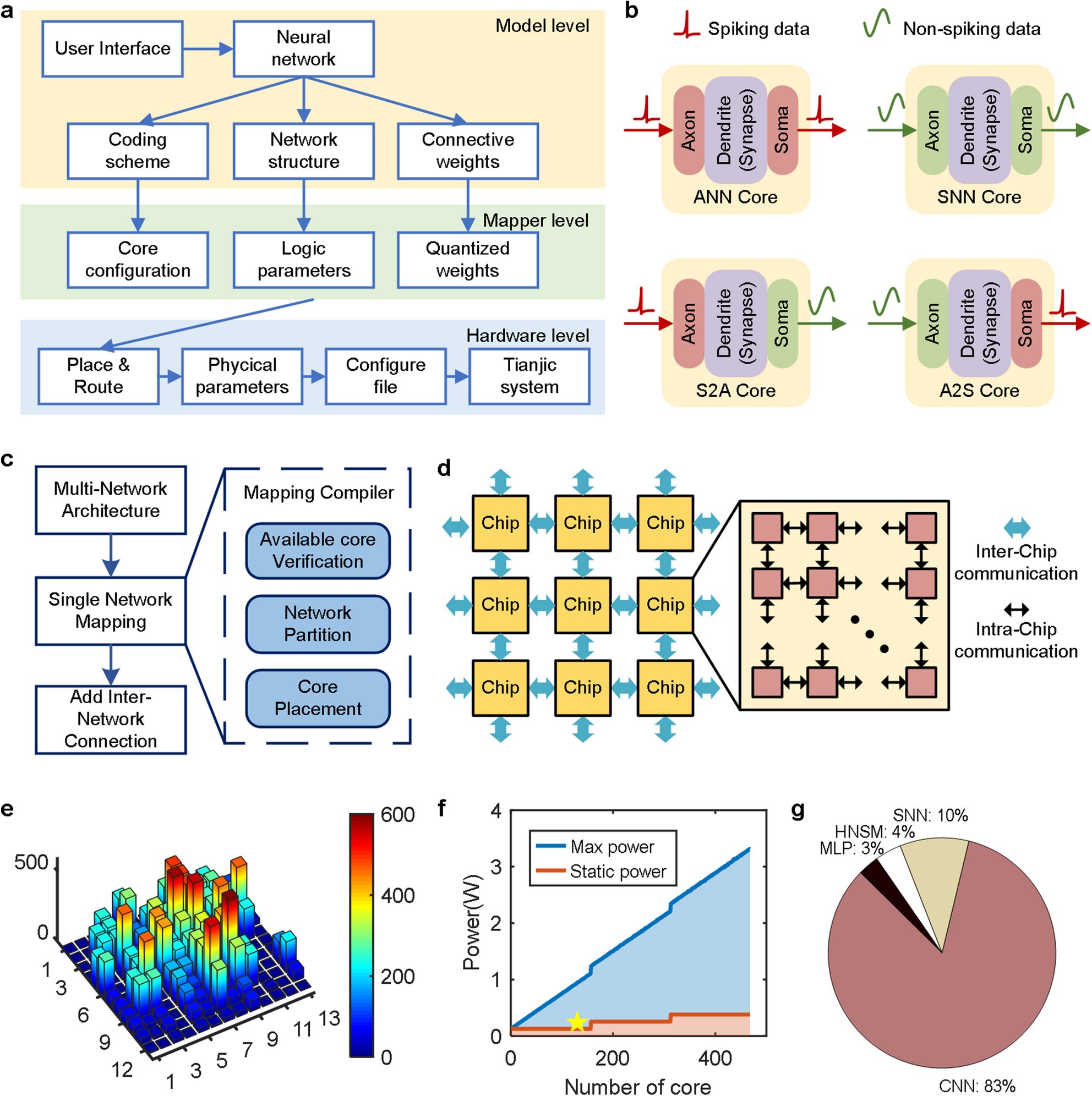

Figure 5
Scalable computing platform. (a) Three-level implementation architecture of Tianjic tool chain. (b) Four hybrid coding configurations for spiking and non-spiking dataflow. (c) Flow diagram of multi-network mapping strategy. (d) Illustration of hierarchy router structure. (e) Distribution of communication traffic in router for each core. (f) The power consumption for different core numbers. (g) Power consumption distribution of various networks. Software: Microsoft Visio 2019 MSO (16.0.10730.20102) 64-bit https://www.microsoft.com/en-us/microsoft-365/visio/flowchart-software MATLAB R2017a (9.2.0.538062) 64-bit (win64) https://ww2.mathworks.cn/products/matlab.html.
