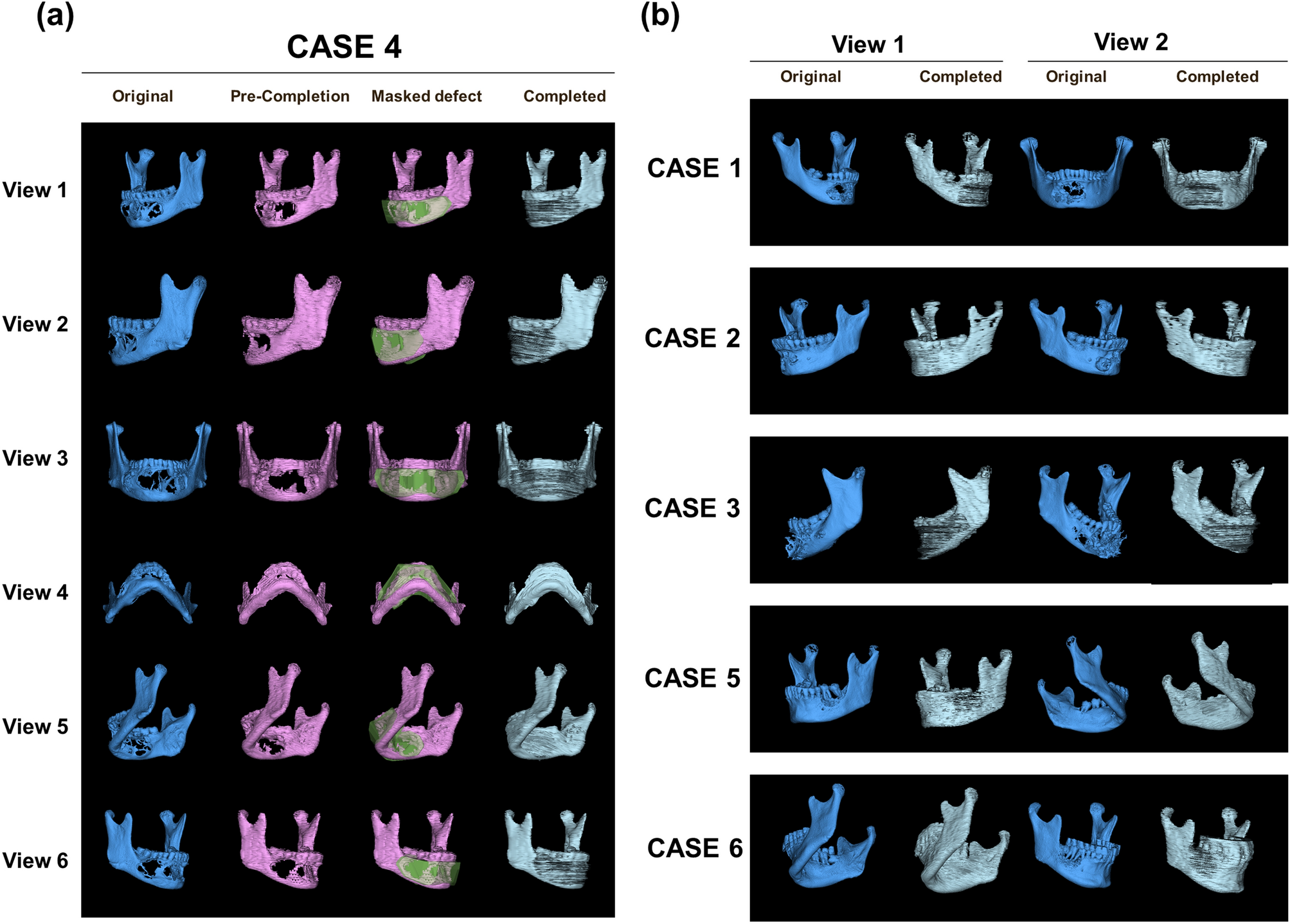

Figure 5
From: Use of artificial intelligence to recover mandibular morphology after disease
3D mandibular completion in 6 clinical cases. (a) Shows case 4, which includes a large range of mandibular defects that are difficult to repair using conventional methods. We present the case in detail from six views. The original mandibular morphology from CBCT, the precompletion with reduced resolution, the area to be filled with the 3D mask and the final completion results are shown. (b) Shows five other cases. For these cases, the completion process was the same as that in case 4. Therefore, only the two views of the original mandible and the final completion are shown.
