Figure 2
From: Asynchronous electric field visualization using an integrated multichannel electro-optic probe

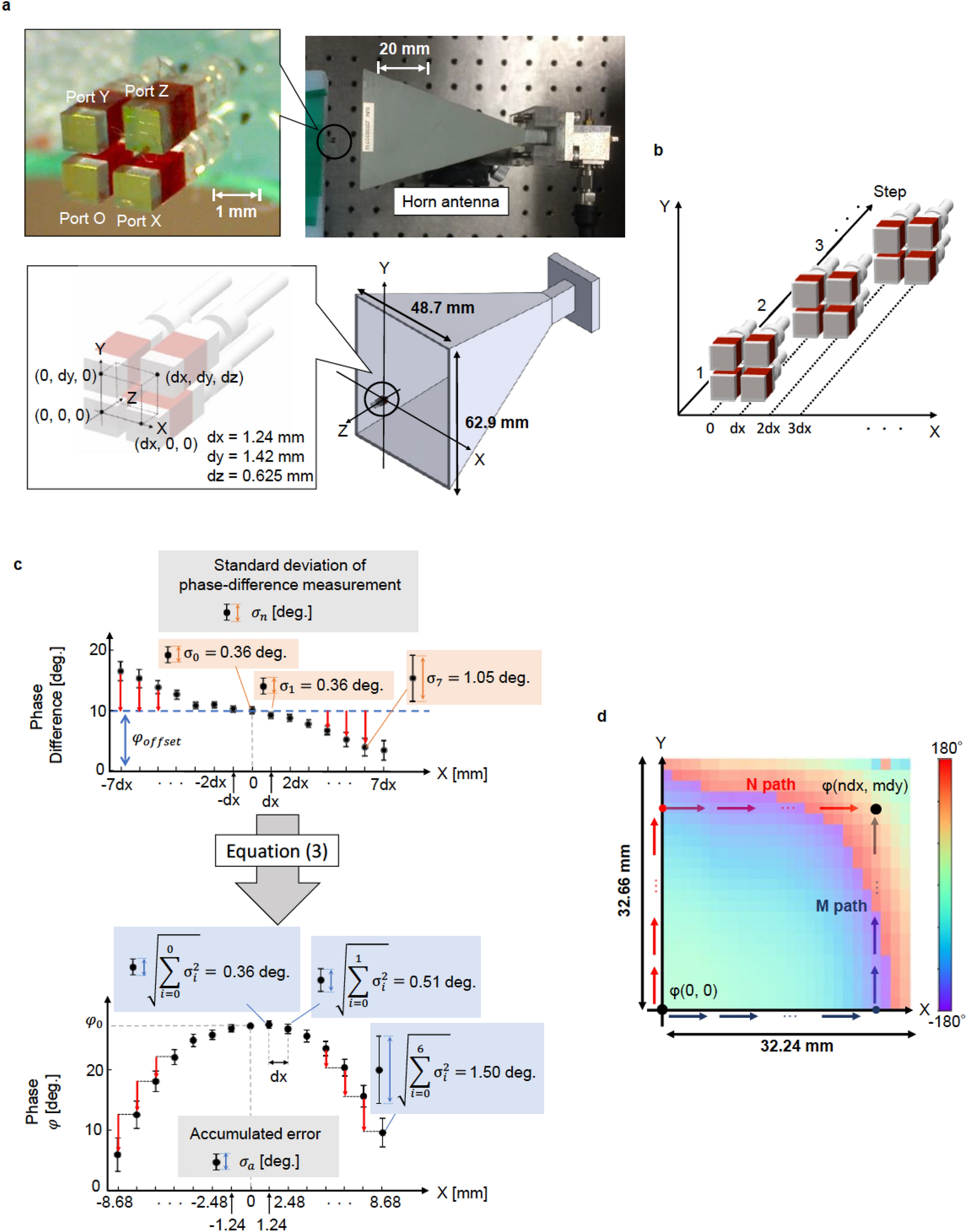

Integrated multichannel probe and measurement method. (a) Integrated multichannel probe. The electro-optic (EO) crystal size is 1 mm3. dx = 1.24 mm, dy = 1.42 mm, and dz = 0.625 mm. (b) Procedure for 1D measurement in the X direction. (c) Measured phase difference distribution and retrieved phase distribution. The blue dotted line indicates the calibrated offset phase, \(\varphi_{offset}\). (d) Retrieved 2D phase distribution.
