Figure 5
From: Analysis of retinal sublayer thicknesses and rates of change in ABCA4-associated Stargardt disease

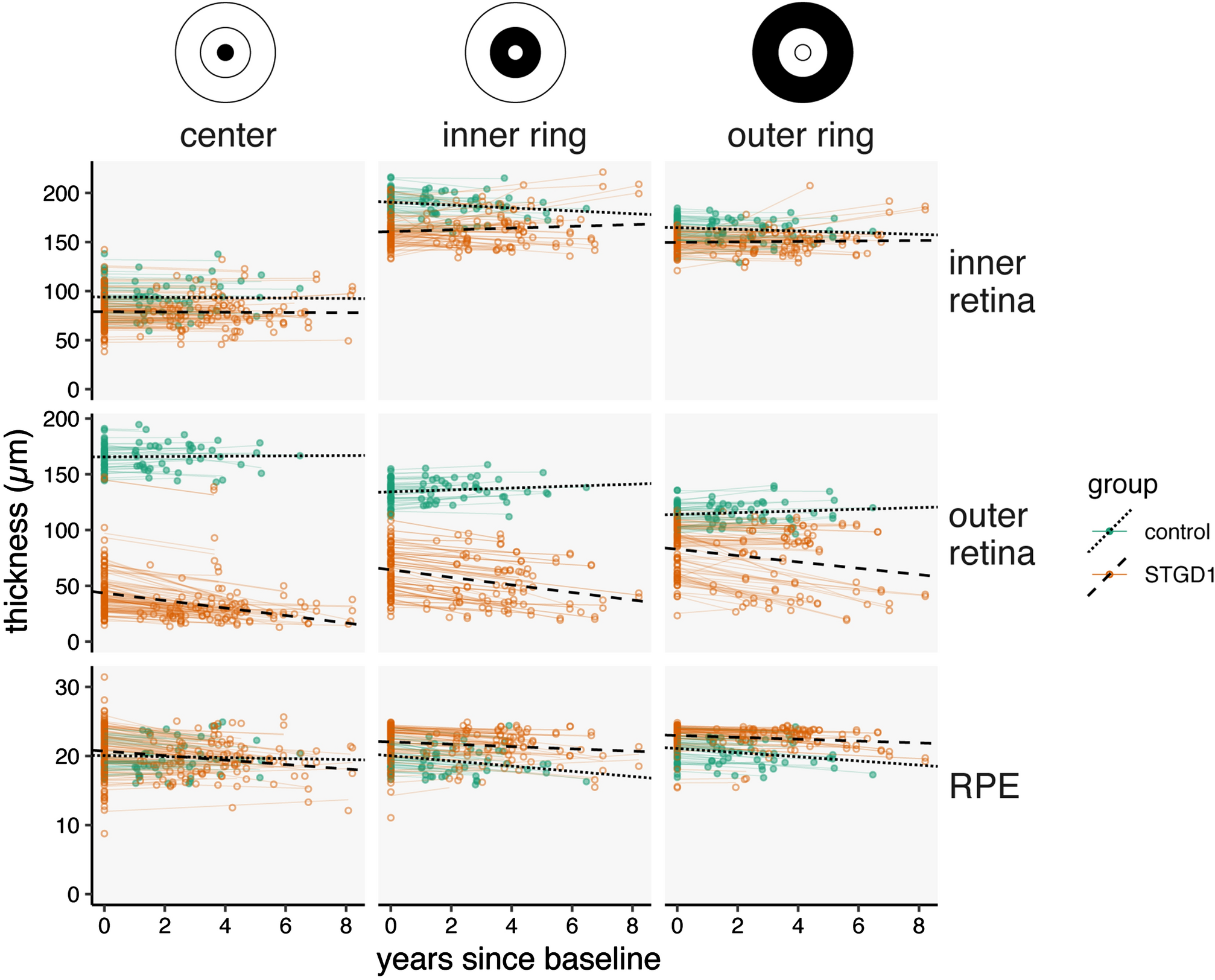

Change in combined retinal sublayer thickness per year by subfield in Stargardt eyes compared to control eyes. Each colored dot represents an average thickness of two graders per control (green) or Stargardt (STGD1) eye (orange). Thin colored lines indicate fits for individual eyes in the dataset. Thick black lines indicate fitted rates for control (dotted) or STGD1 eyes (dashed). Inner retina = nerve fiber layer to the outer plexiform layer. Outer retina = outer nuclear layer to the outer segments. RPE = retinal pigment epithelium. Generated from data using R (ver. 2.6.3; https://www.r-project.org/). ETDRS rings added in Adobe Illustrator (ver. 24.0.3; https://www.adobe.com/products/illustrator.html).
