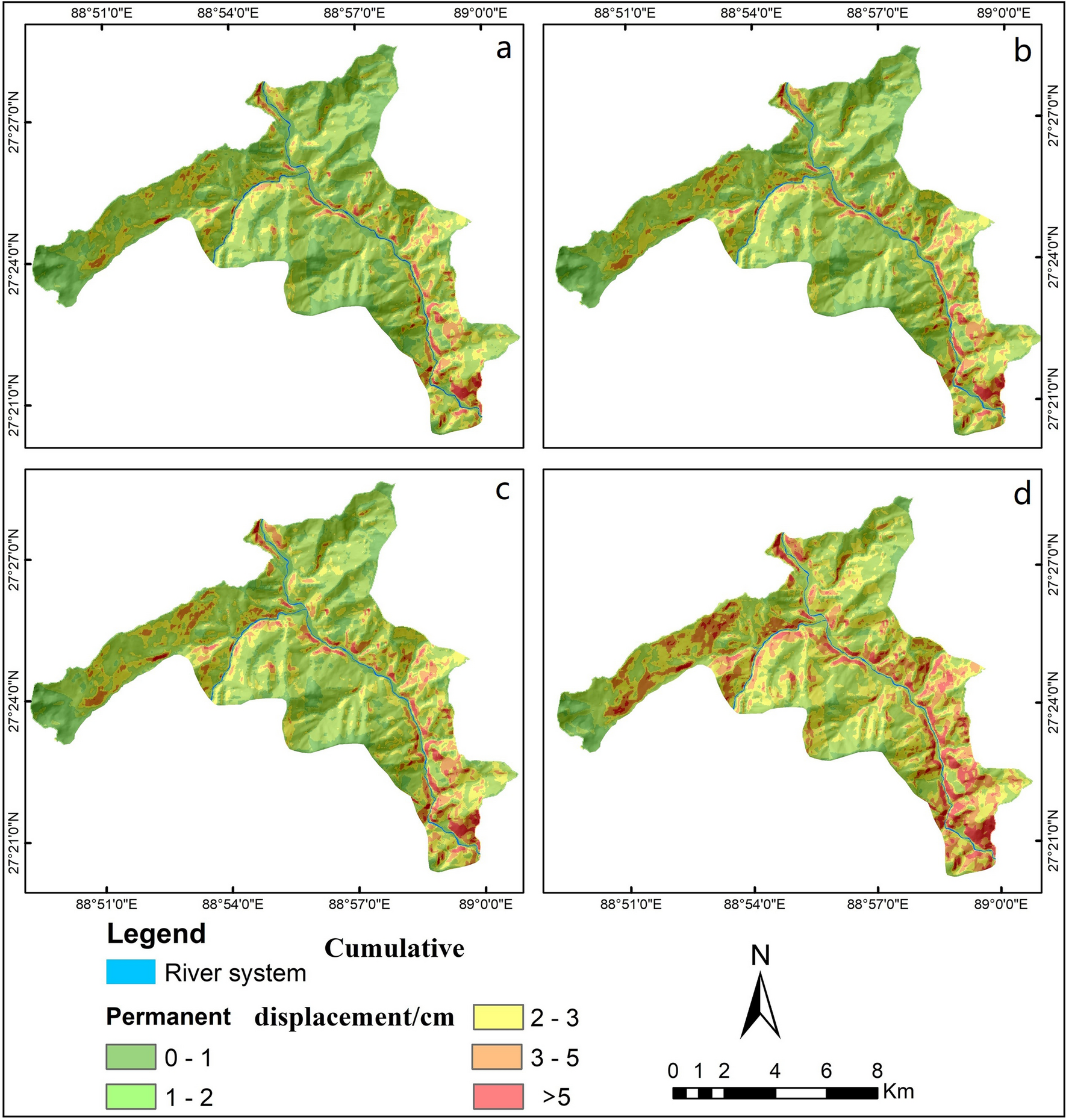

Figure 4

Permanent displacement distribution maps in the study area under (a) dry conditions and rainfall categories of (b) 10 mm/day, (c) 20 mm/day, and (d) 45 mm/day, when combined with a 10% probability of a ground motion exceeding 0.20 g in 50 years. These maps were generated by Le Mei and Lixia Chen using Eq. (7) on the ArcGIS ver.10.2.
