From: MicroRNAs 363 and 149 are differentially expressed in the maternal circulation preceding a diagnosis of preeclampsia

Figure 1Figure 1

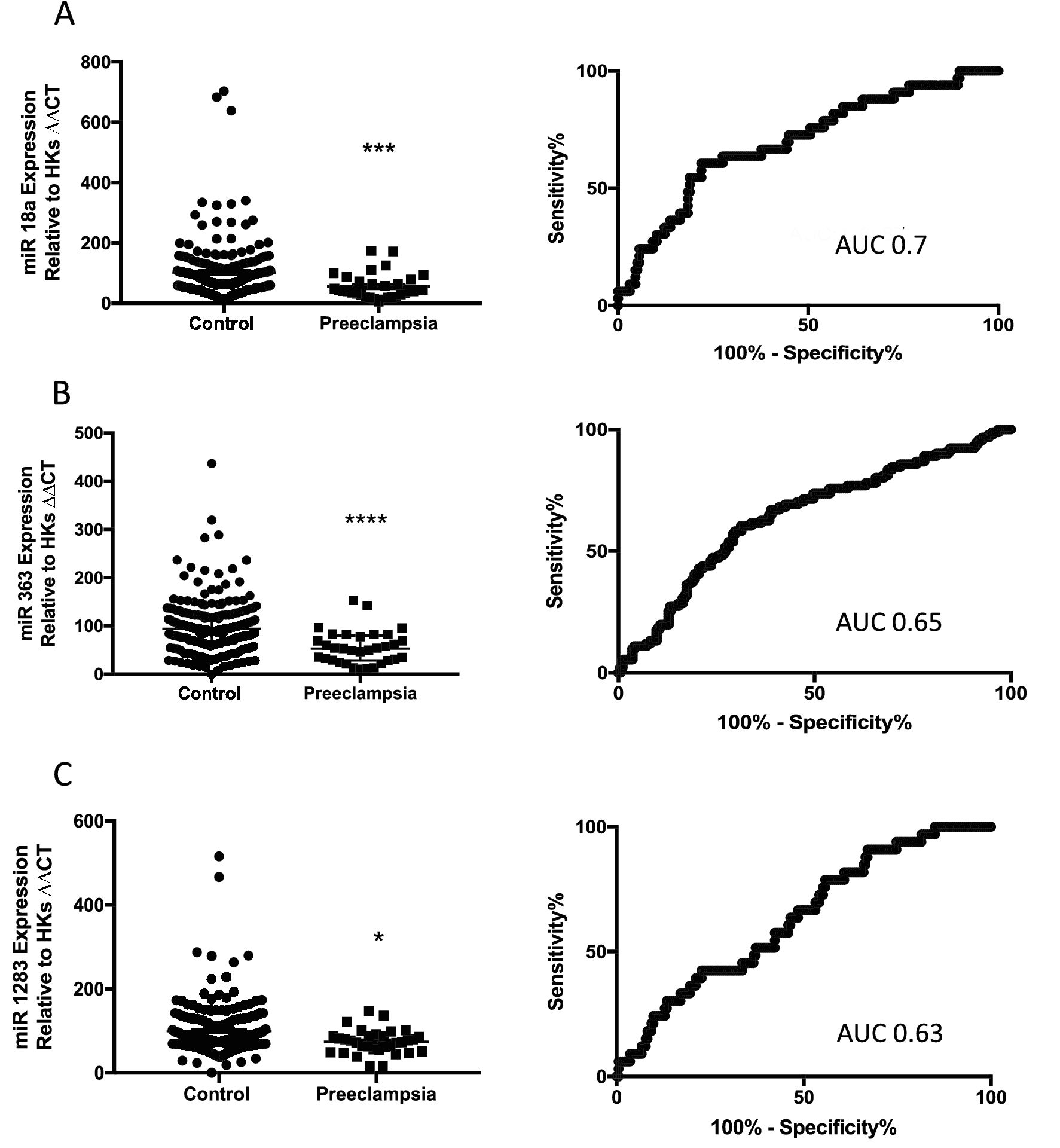

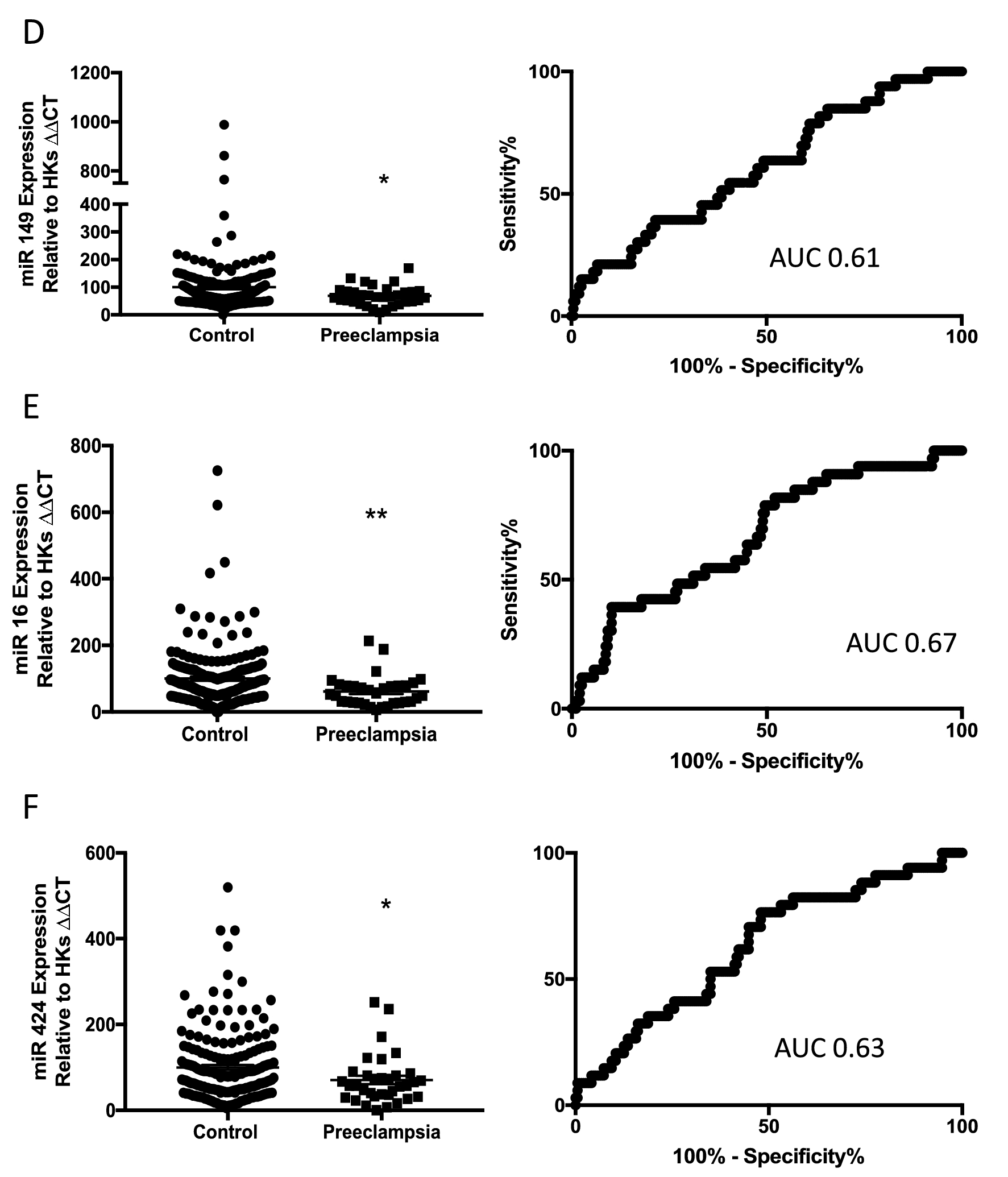

Circulating miRs are reduced in maternal whole blood in women at 36 weeks’ gestation who will go on to develop term preeclampsia. miR18a (A), miR363 (B), miR1283 (C), miR149 (D), miR16 (E) and miR424 (F) were all significantly reduced in the whole blood of women who will go on to develop preeclampsia relative to control women. Area under the receiver operator curve (AUC ROC) are shown on each graph. *p < 0.05, **p < 0.01, ***p < 0.001, ***p < 0.0001. Data expressed as mean ± SEM, individual symbols represent individual patients. PE n = 34, controls n = 196.
