From: Real-time on-machine observations close to interelectrode gap in a tool-based hybrid laser-electrochemical micromachining process

Figure 6

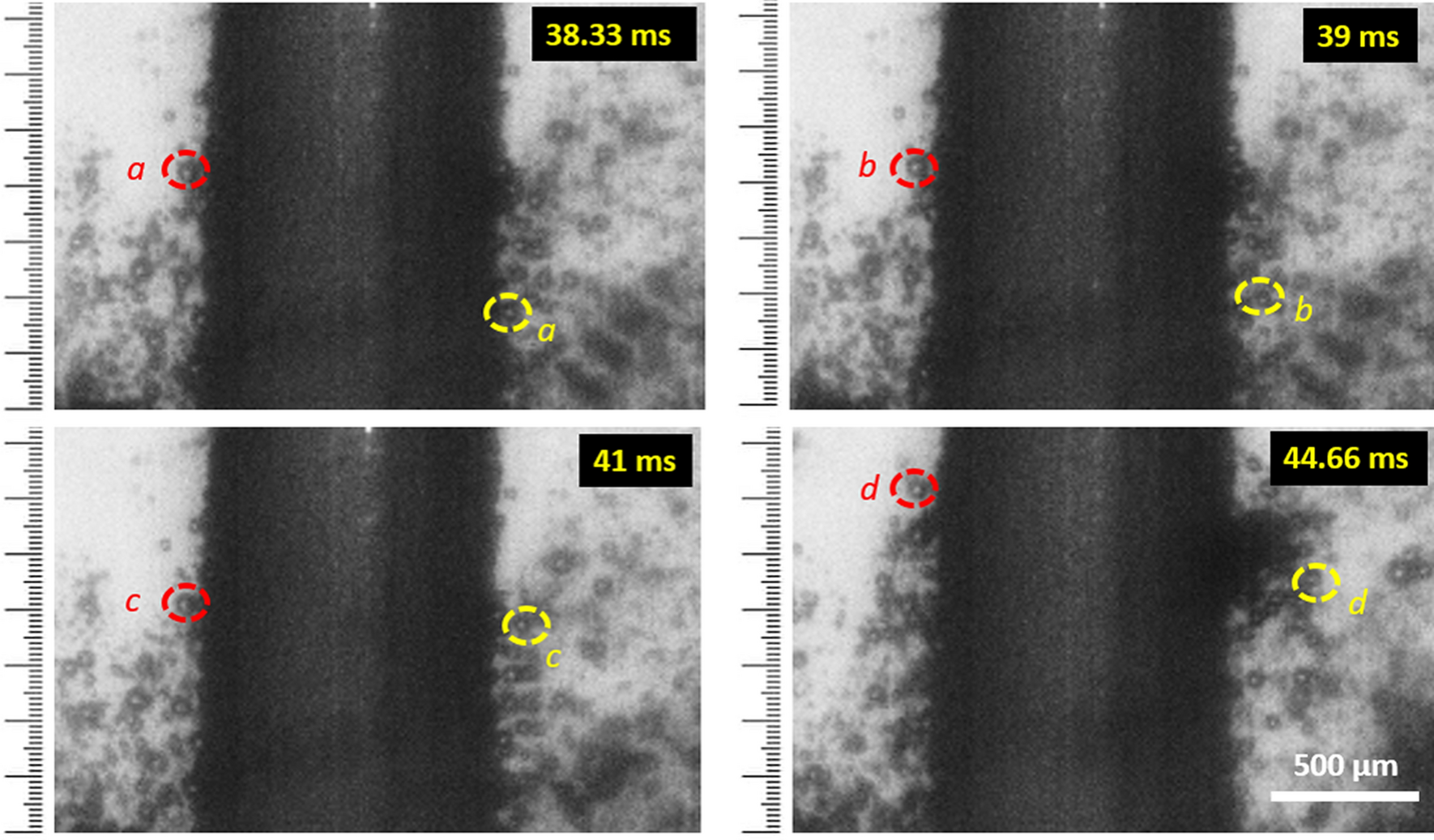

H2 bubble motion tracking along the length of tool (cathode) during hybrid laser-ECM process 10 V/30 µJ. The positions of two bubbles were tracked on both sides of the tool at different time-frames and are shown in red and yellow color circles. It is evident that the bubble moves upwards along the length of the tool (cathode) with time.
