Figure 3
From: Structural basis of peroxidase catalytic cycle of human Prdx6

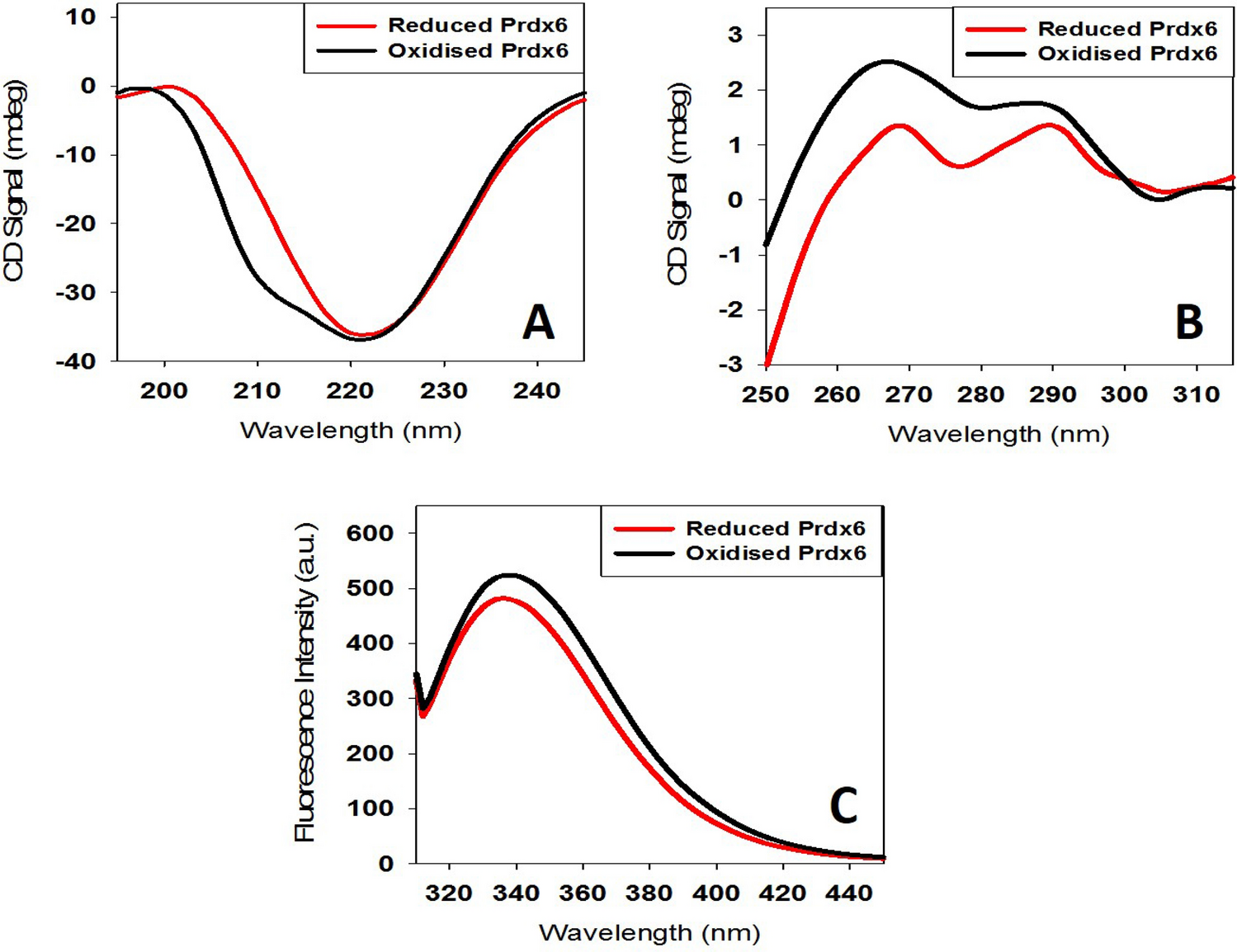

Prdx6 Structure Determination at Different Redox State. The secondary and tertiary structure of Prdx6 at different redox state is determined using (A) far-UV CD, (B) near-UV CD, and (C) tryptophan fluorescence measurements of reduced and oxidised Prdx6. The data is plotted using Sigma Plot 10.0 (Systat Software, Inc., San Jose California, USA, www.systatsoftware.com).
