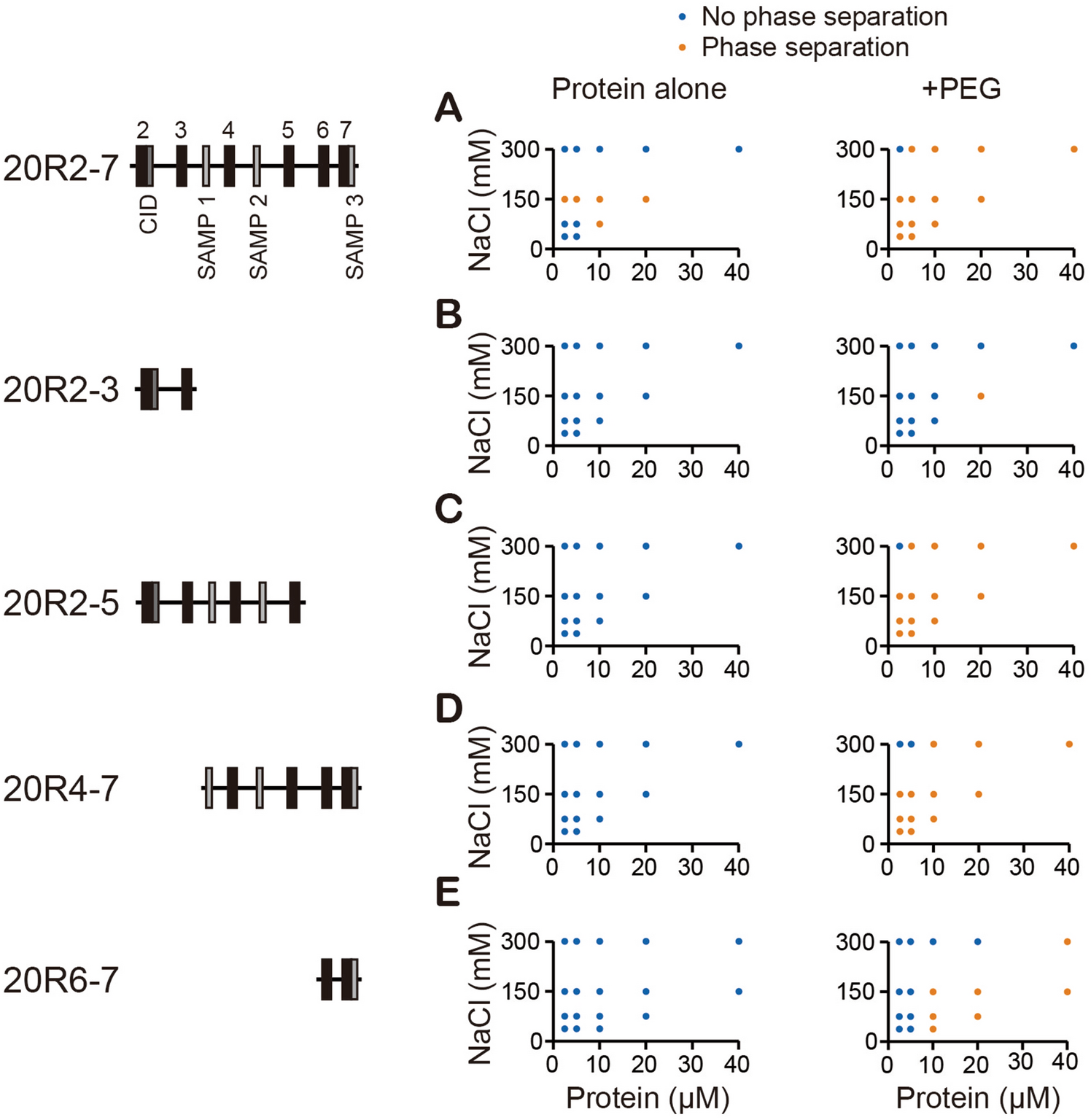

Figure 2

LLPS propensity of APC IDR is length dependent. Left, the APC fragments tested. (A–E) Salt diagram of the APC fragments in the absence (left panel) or present (right panel) of the crowding reagent PEG. Protein concentrations are 2.5, 5, 10, 20, 40 µM, and NaCl concentrations are 37.5, 75, 150, 300 mM.
